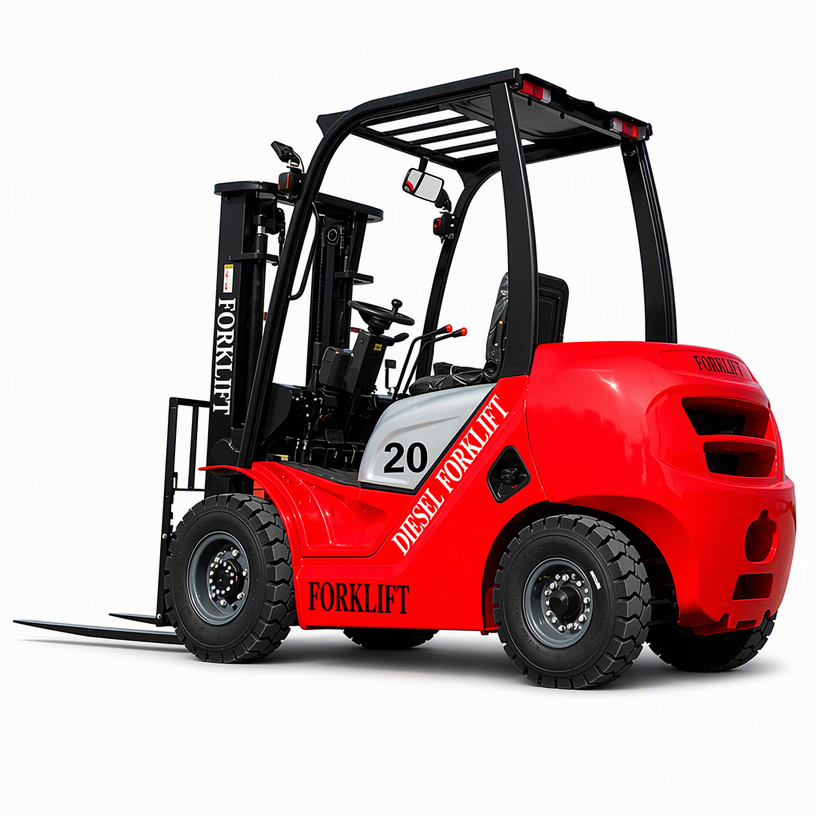

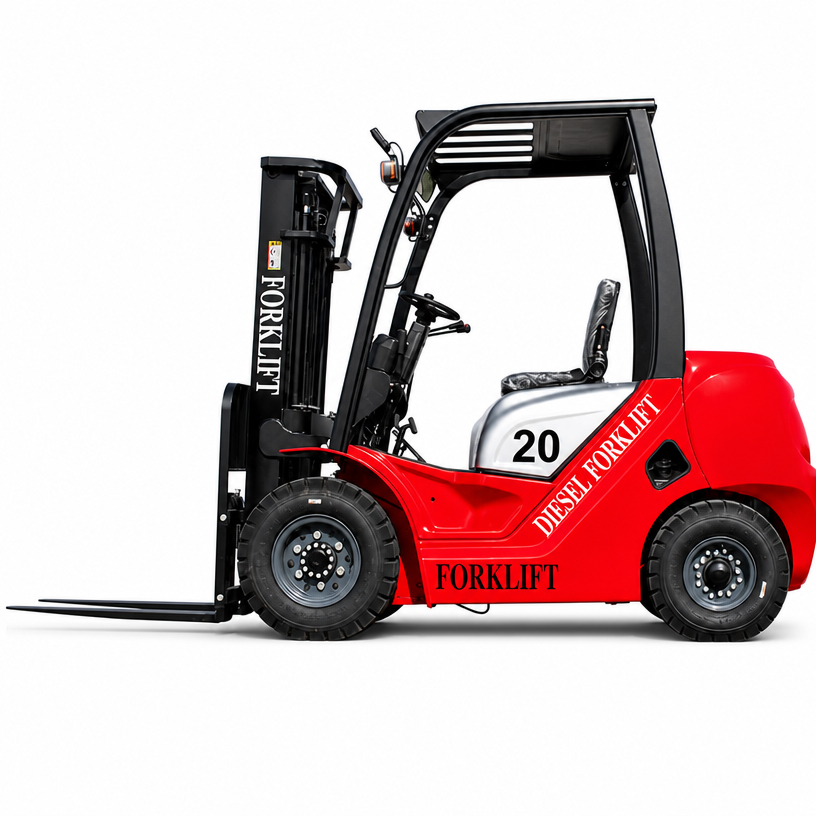

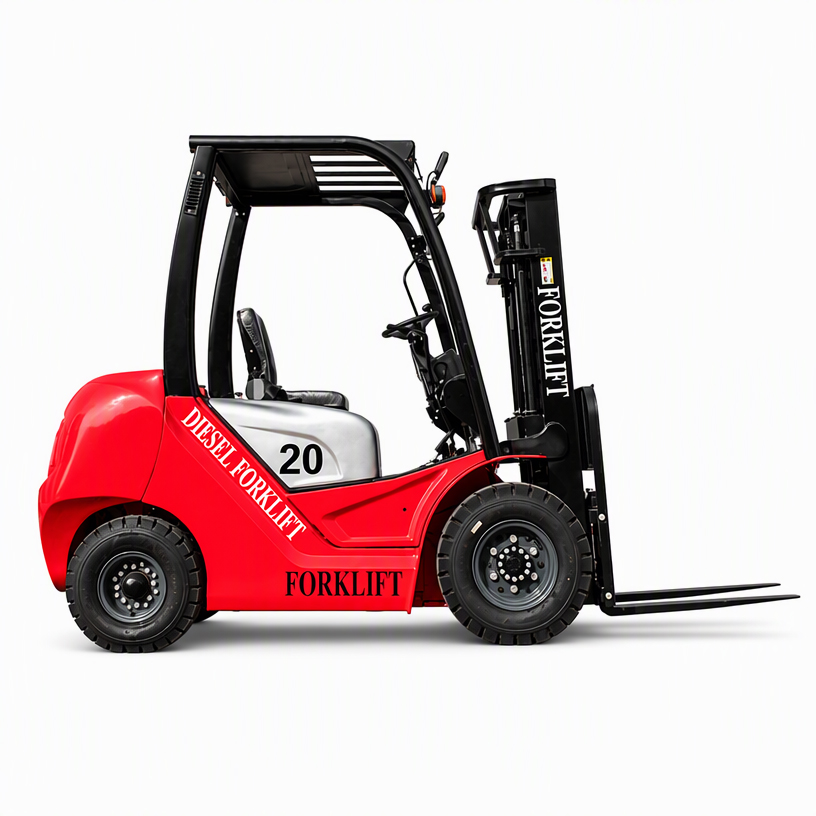

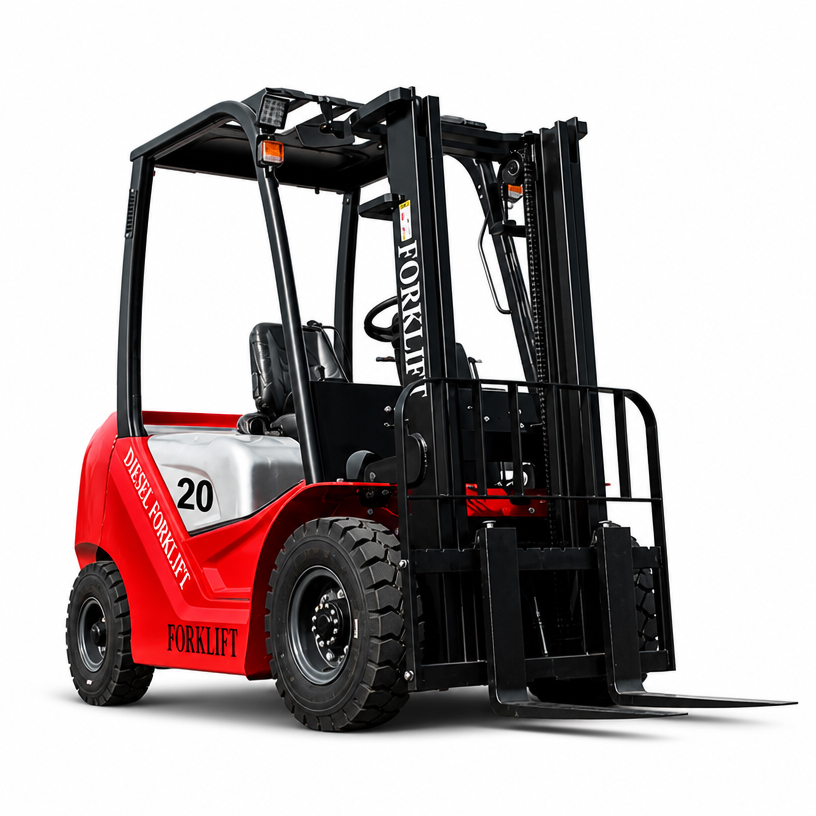

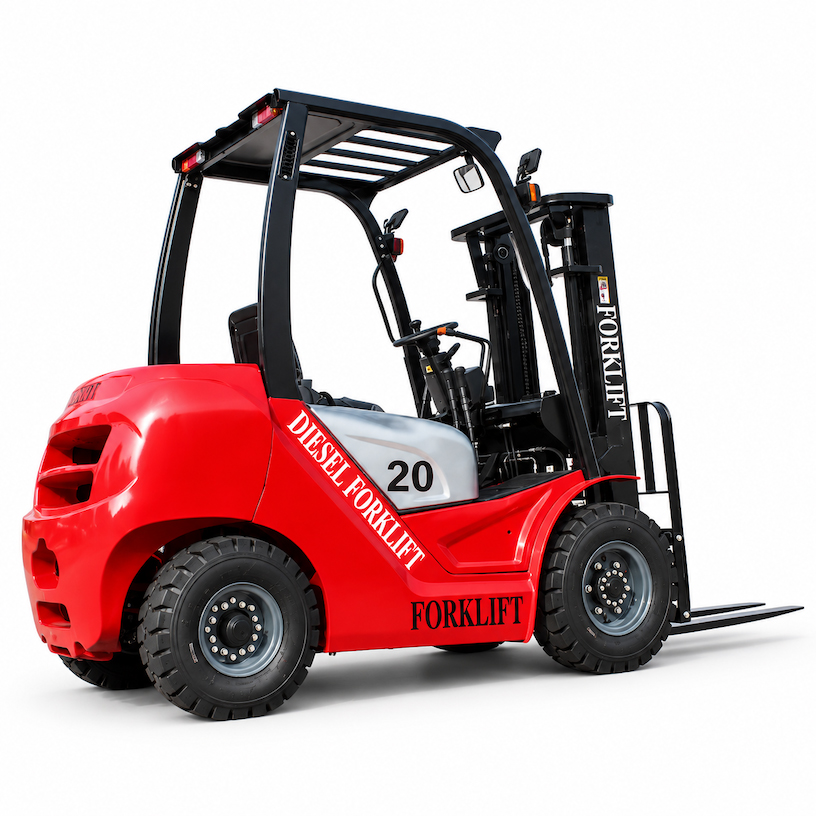

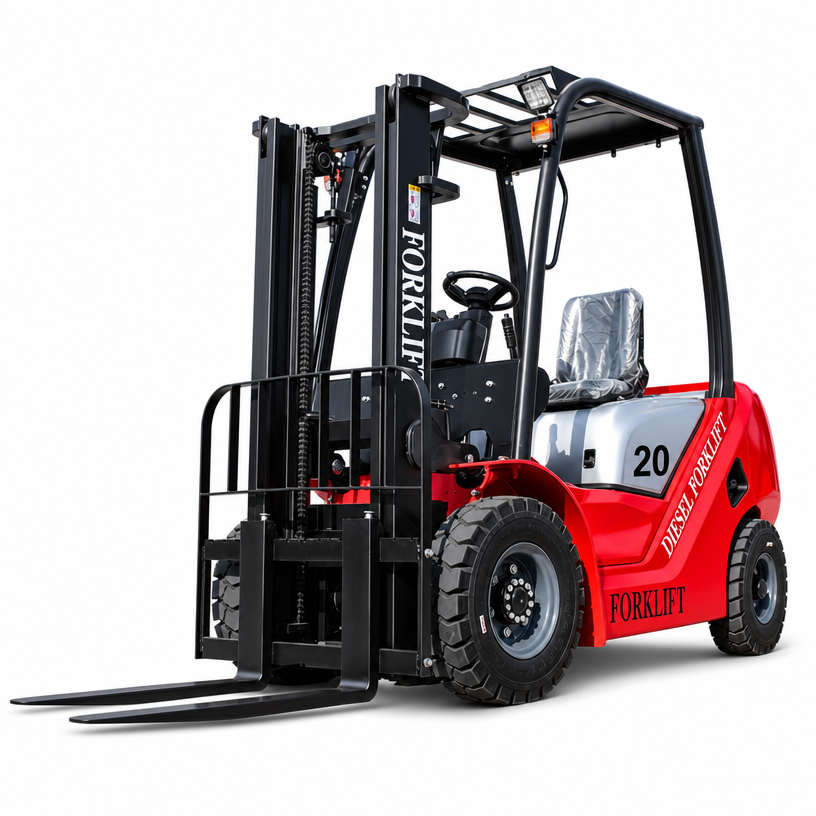

The LEAD K20/KII20 2 ton diesel forklift truck is designed for material handling in warehouses, manufacturing facilities, logistics centers, industrial yards, and other working environments. With a rated capacity of 2,000 kg and a 500 mm load center, this counterbalance forklift is suitable for handling compatible palletized goods, raw materials, and industrial products.
Reliable Diesel Power
The K20/KII20 is equipped with a Xinchai QC490BPG diesel engine, with a rated output of 39 kW at 2,650 rpm and maximum torque of 160 N·m at 1,980 rpm. Its diesel power system supports routine material handling and loading operations.
Practical Lifting Performance
With a standard lifting height of 3,000 mm and a free lift height of 130 mm, the forklift supports common lifting, stacking, loading, and unloading tasks. The listed laden lifting speed is 540 mm/s, while the maximum gradeability under load is 20%, according to the supplied specifications.
Compact Working Dimensions
The forklift has an overall length of 2,595 mm without forks, an overall width of 1,160 mm, and an outside turning radius of 2,480 mm. These dimensions help buyers evaluate whether the truck is suitable for their operating areas. Actual suitability depends on aisle width, load size, floor conditions, and working layout.
To accommodate different load types, compatible attachments can be considered for the K20/KII20, subject to mounting and hydraulic compatibility.
Sideshifter: Helps move the fork carriage laterally for more accurate pallet positioning.
Fork Positioner: Adjusts fork spacing hydraulically for handling loads of different widths.
Rotator: Supports turning compatible loads or containers for specific handling processes.
Paper Roll Clamp: Designed for handling suitable paper rolls in paper, printing, and packaging operations.
Bale Clamp: Suitable for compatible compressed bales in selected textile, fiber, and recycling applications.
Carton Clamp: Handles compatible cartonized loads without conventional pallets.
Drum Clamp: Designed for compatible industrial drums.
Push-Pull Attachment: Handles suitable unit loads on compatible slip sheets instead of conventional pallets.
Attachment availability and compatibility should be confirmed before ordering. The use of an attachment may affect residual capacity, load center, and operating dimensions.
The LEAD 2 ton diesel forklift can be used in manufacturing plants, warehouses, logistics facilities, building-material yards, and general industrial material handling operations. It supports the movement of suitable goods between storage, production, loading, and dispatch areas.
When selecting a forklift, buyers should consider rated load capacity, lifting height, load dimensions, working environment, and any special attachment requirements.
Looking for a 2 ton diesel forklift for your business? Contact LEAD to discuss the K20/KII20 specifications, optional attachments, and application requirements. Our team can help you review the appropriate configuration and provide a quotation for your material handling needs.
Contact LEAD for product details and a quote.
This 2-ton diesel forklift features a sleek and elegant exterior design, with smooth lines and a modern aesthetic that makes it both a practical material handling tool and a standout presence in industrial environments.
Equipped with a new-generation steering wheel adjustment mechanism, it allows for precise multi-angle adjustments to suit different operators' habits and body types. This innovative design significantly enhances operational comfort, reducing fatigue during long hours of work, while also improving adjustment reliability to ensure stability in complex working conditions without looseness or displacement.
The high-roof large-diameter intake system is a key technical highlight. It effectively keeps dust away from the engine, creating a clean air intake environment to prevent performance degradation and component wear caused by dust intrusion. This ensures the engine operates at peak efficiency for longer, significantly extending its service life and reducing maintenance costs and downtime.
The wide-view frame design comprehensively expands the driver’s field of vision. Whether maneuvering through narrow warehouse aisles or busy loading/unloading areas, operators can clearly observe the surrounding environment and cargo, effectively minimizing the risk of collisions and enhancing both safety and operational efficiency.
A reliable LCD digital instrument panel with a user-friendly human-machine interface displays real-time key vehicle parameters such as speed, fuel level, and engine RPM. Operators can quickly grasp the vehicle’s status at a glance, enabling timely adjustments to ensure smooth workflow.
Additionally, a cast steering axle is available as an optional feature. Its robust and durable construction not only provides stable and reliable steering performance but also reduces routine maintenance frequency and costs due to its structural advantages, helping businesses save on operational expenses.
This 2-ton diesel forklift combines outstanding design and advanced technology to deliver a new level of efficiency, comfort, and safety for your material handling operations.
