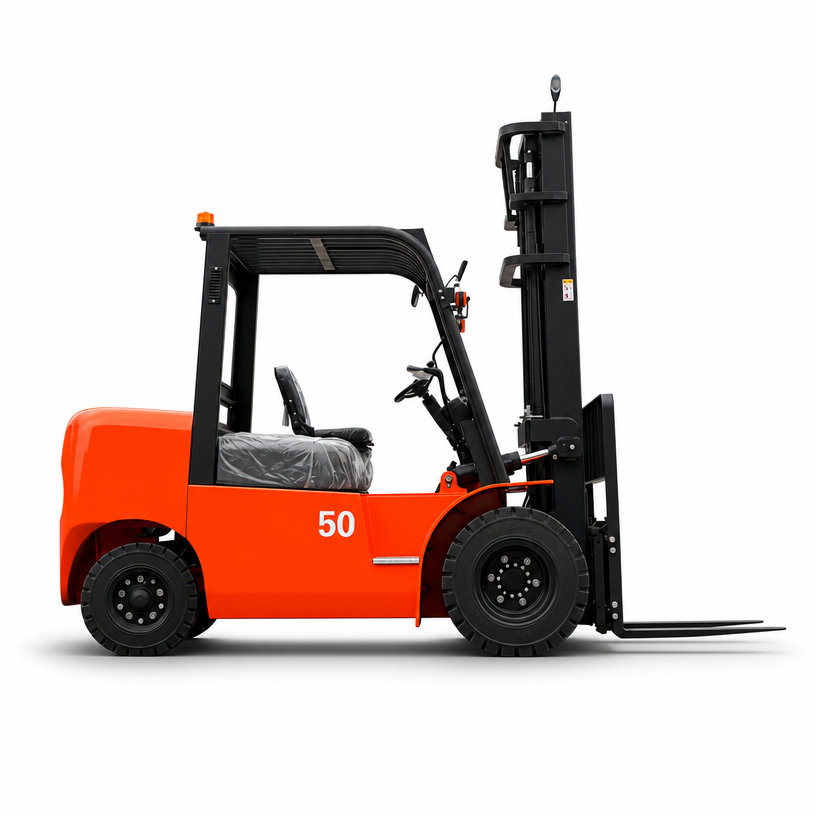

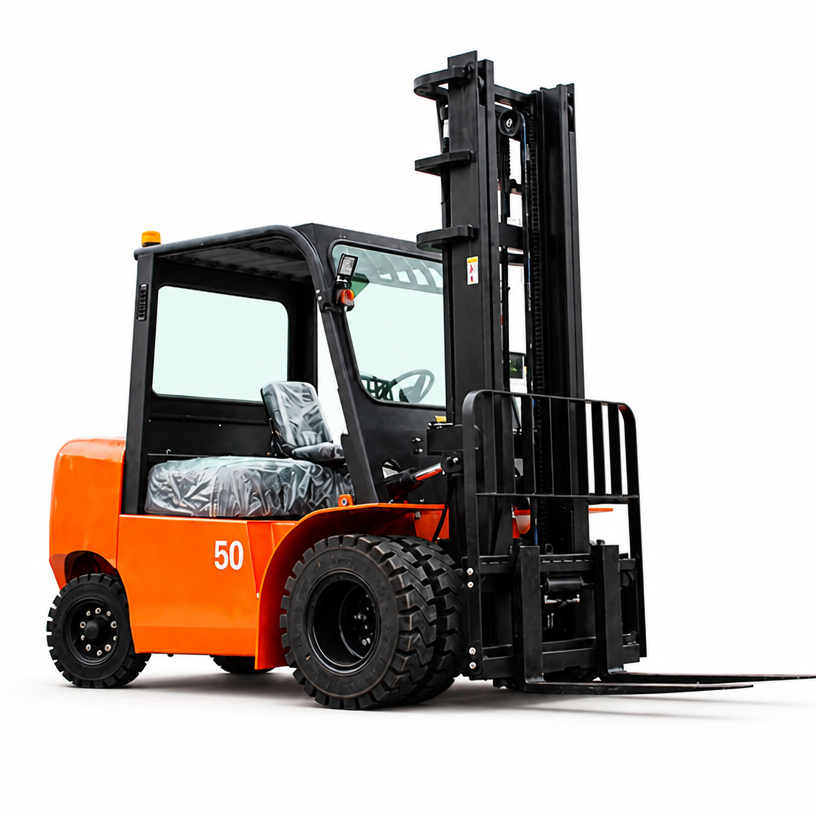

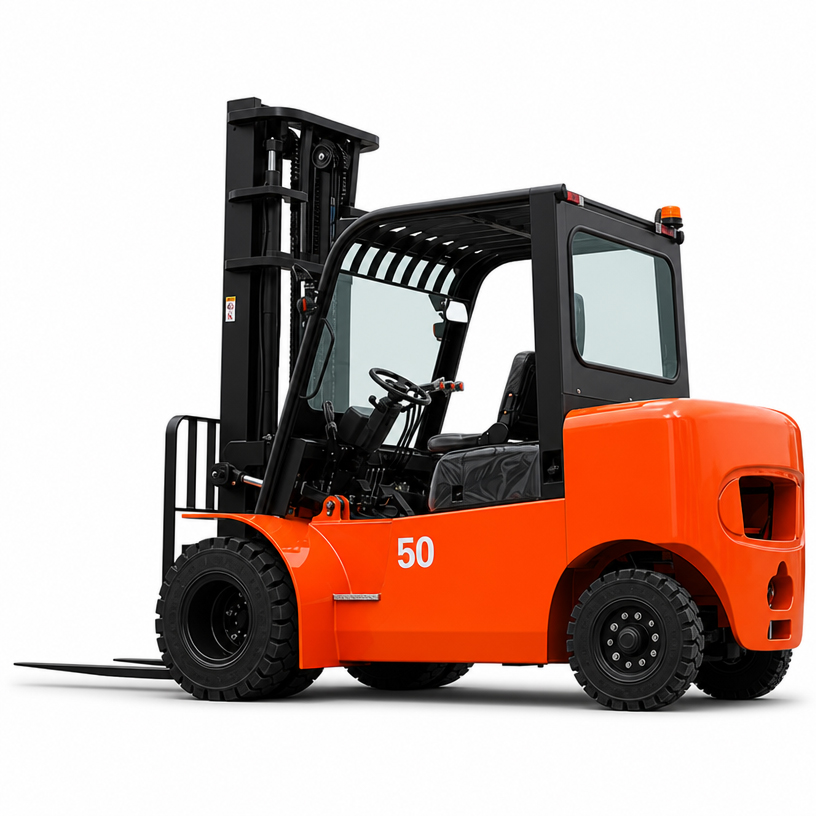

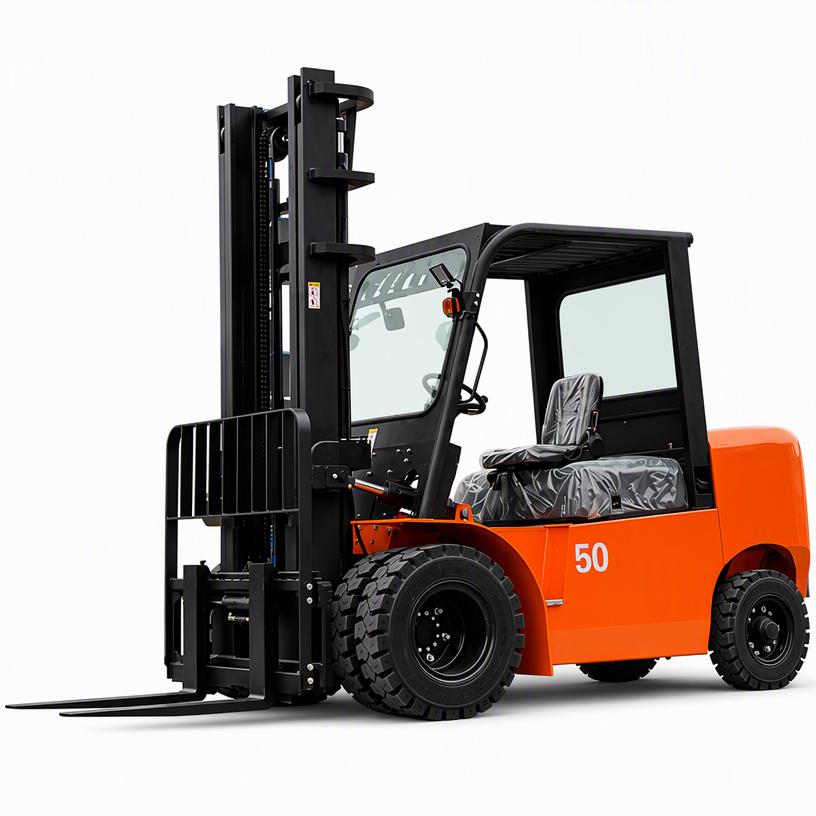

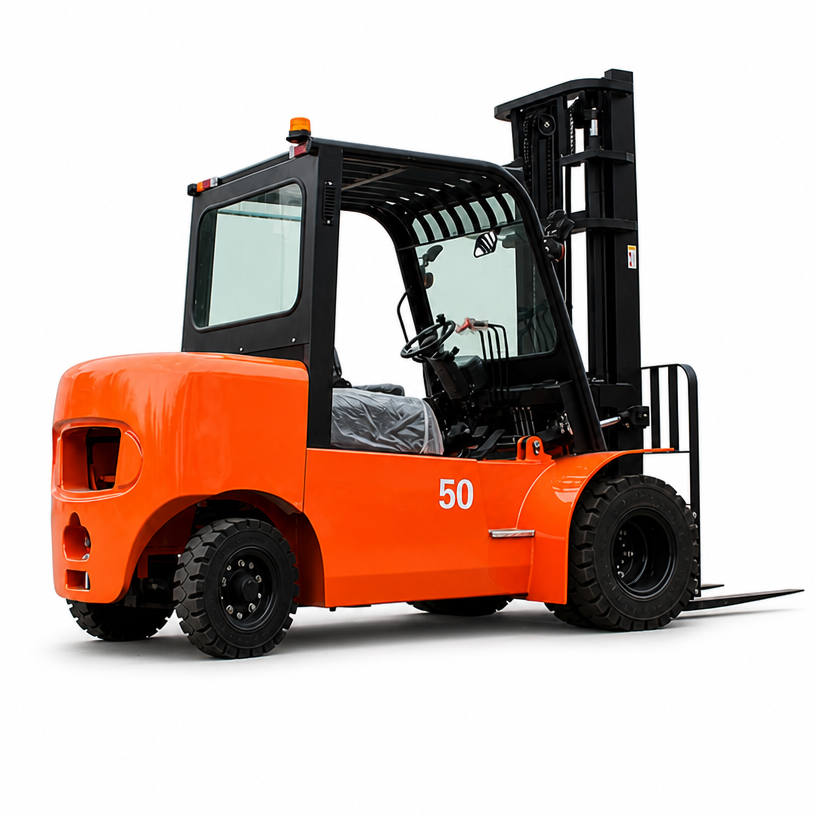

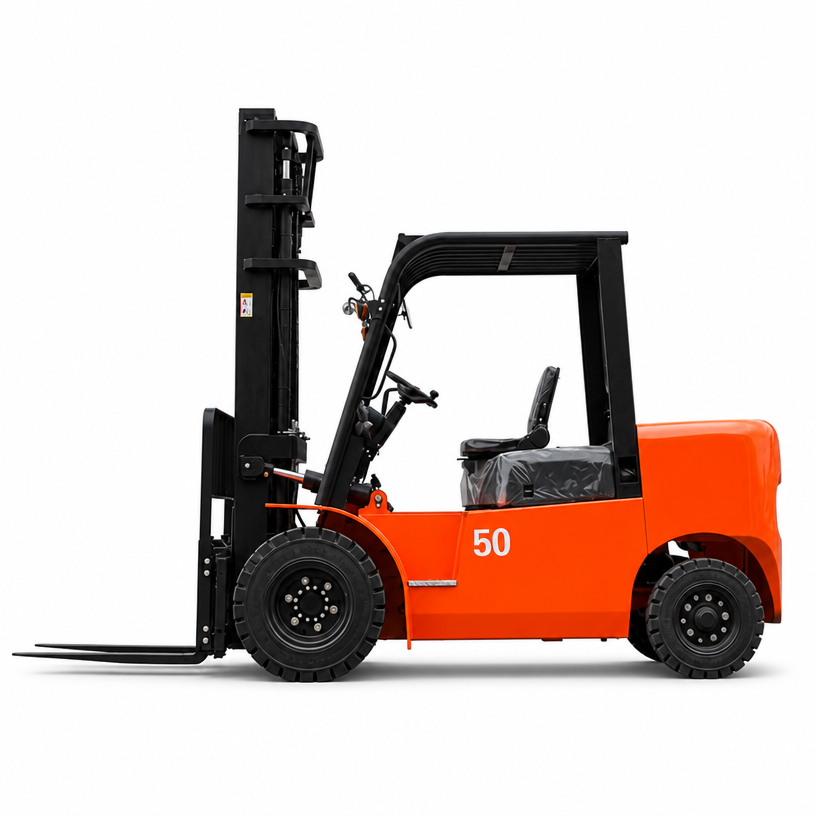

The LEAD H50 5 ton diesel forklift is designed for heavy-duty material handling in industrial and commercial environments. With a rated capacity of 5,000 kg and a 500 mm load center, this diesel counterbalance forklift is suitable for handling palletized goods, industrial materials and other heavy loads in factories, logistics yards, warehouses and distribution facilities.
The H50 features a maximum lift height of 3,000 mm and a free lift height of 150 mm. Its rated unladen travel speed is 18.5 km/h, with a laden lifting speed of 400 mm/s. The maximum gradeability under load is 20%, according to the supplied product specifications.
The forklift has an outside turning radius of 3,050 mm, an overall width of 1,480 mm and an overall length of 3,240 mm without forks. The mast lowered height is 2,275 mm, while the mast extended height with the load backrest is 4,310 mm. These dimensions help buyers evaluate the forklift's suitability for their operating space, loading areas and material handling routes.
According to the supplied specification table, the LEAD H50 is equipped with a 4D35G diesel engine manufactured by Zhejiang Xinchai. The listed rated output is 48 kW at 2,300 rpm, with maximum torque of 230 N·m at 1,600 rpm. The forklift also features a 90 L fuel tank and a service weight of 6,660 kg.
These specifications provide a useful reference for buyers assessing a forklift for regular industrial operations. Actual suitability depends on the load, duty cycle, operating environment and maintenance requirements.
The H50 can be considered for manufacturing plants, logistics centers, building material yards and other workplaces that require the movement of heavy loads. Before choosing a forklift, buyers should assess load weight, load center, required lifting height, ground conditions, working aisle width and operating hours.
Depending on the application, optional attachments such as sideshifters, fork positioners, rotators, paper roll clamps, bale clamps and carton clamps may be considered. Compatibility must be confirmed according to the mounting interface, hydraulic circuit requirements, load characteristics and residual lifting capacity. Not every attachment is suitable for every forklift configuration.
Contact LEAD to request detailed specifications, confirm the H50 configuration and discuss suitable options for your material handling requirements. Our team can help you review the product details before placing an order.
5T Diesel Forklift: The Premier Choice for Industrial-Grade Material Handling
In the modern industrial logistics sector, efficiency, reliability, and safety are the core standards for measuring material handling equipment. Our newly launched 5T diesel forklift fully meets your operational needs with innovative technology and user-centric design, redefining the industry benchmark for heavy-duty handling equipment.
Precise Control, Effortless Steering
Equipped with a full-hydraulic steering system, this forklift achieves an ultra-small turning radius, enabling flexible maneuvering in narrow aisles or dense warehousing environments to easily handle complex work conditions. The hydraulic system is precisely calibrated for light and labor-saving steering, significantly reducing driver fatigue. Meanwhile, multiple safety redundancy designs ensure stable and reliable steering, effectively preventing safety hazards caused by operational errors and escorting efficient operations.
Engine Protection, Sustained Efficiency
The high-position intake system adopts an innovative vertical layout, positioning the air inlet at the top of the vehicle to effectively isolate ground dust, debris, and other pollutants, keeping the engine in a clean intake environment. This design not only significantly enhances engine performance, reducing carbon buildup and wear, but also extends engine service life by over 30%, lowering long-term maintenance costs and ensuring the equipment operates stably in harsh environments such as mines and ports.
Vision Innovation, Safety Enhancement
The breakthrough low instrument panel and wide-view frame combination design eliminates the visual blind spots of traditional forklifts by optimizing the cockpit layout and frame structure. Drivers can observe cargo, surrounding equipment, and pedestrian dynamics with a 360° panoramic view, enabling precise positioning during high-position loading/unloading or night operations, improving operational safety by 40% while significantly enhancing loading/unloading efficiency.
Intelligent Interaction, Accurate Control
Featuring a high-resolution LCD digital instrument panel, it real-time displays more than 20 key data points, including speed, load weight, fuel consumption, and engine status. The icon-based interface design increases operation command response speed by 30%. With integrated Bluetooth connectivity, data can be synced to management systems with one click, helping enterprises achieve digitalized maintenance.
Flexible Configuration, Diverse Adaptability
It supports dual-mode selection of hydraulic and mechanical transmission systems: Hydraulic transmission is suitable for high-frequency, refined handling with rapid response; mechanical transmission delivers high torque for heavy-load conditions, allowing users to switch flexibly according to actual needs. Additionally, multiple power models are available, all meeting the latest international environmental protection standards, while featuring industry-leading energy-saving, vibration-damping, and noise-reduction technologies that reduce operating noise by 20% and vibration amplitude by 15%, balancing environmental protection and operational comfort.
Precision Craftsmanship, Durable Reliability
Using advanced manufacturing processes and strict quality control systems, key components are sourced from internationally renowned suppliers, such as high-strength alloy steel frames and imported hydraulic pumps/valves, ensuring the vehicle has high impact resistance and durability. The optimized front suspension structure reduces front axle load by 25% under full load through shortened suspension travel and reinforced support components, minimizing component wear and extending overall equipment life to create long-term value for enterprises.
Whether for high-frequency handling in large logistics centers or heavy-load operations in heavy industry scenarios, this 5T diesel forklift can become your ideal choice for enhancing productivity and reducing operating costs with its excellent performance and reliable quality.
