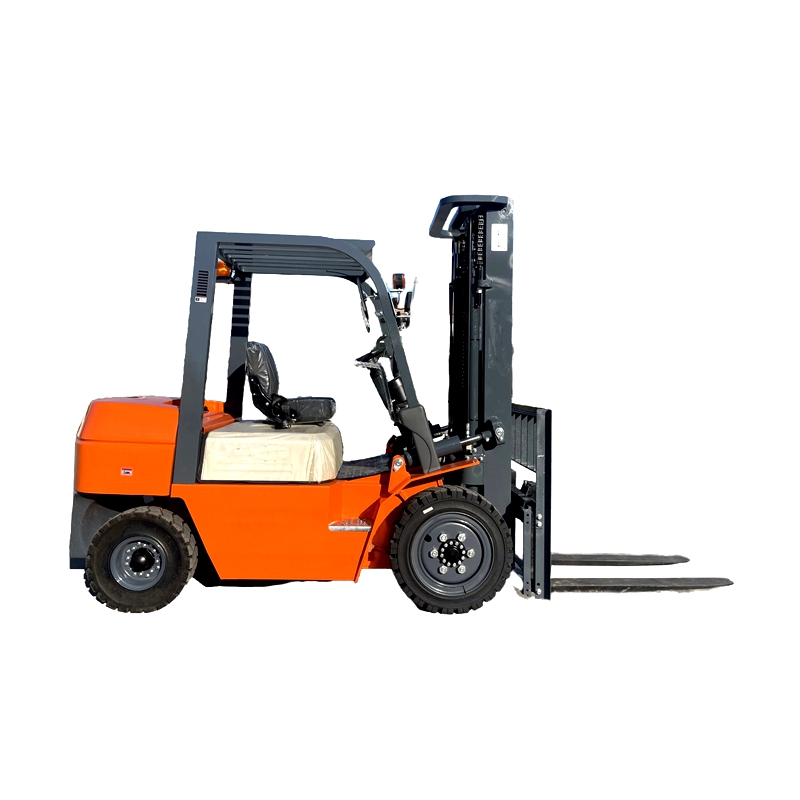

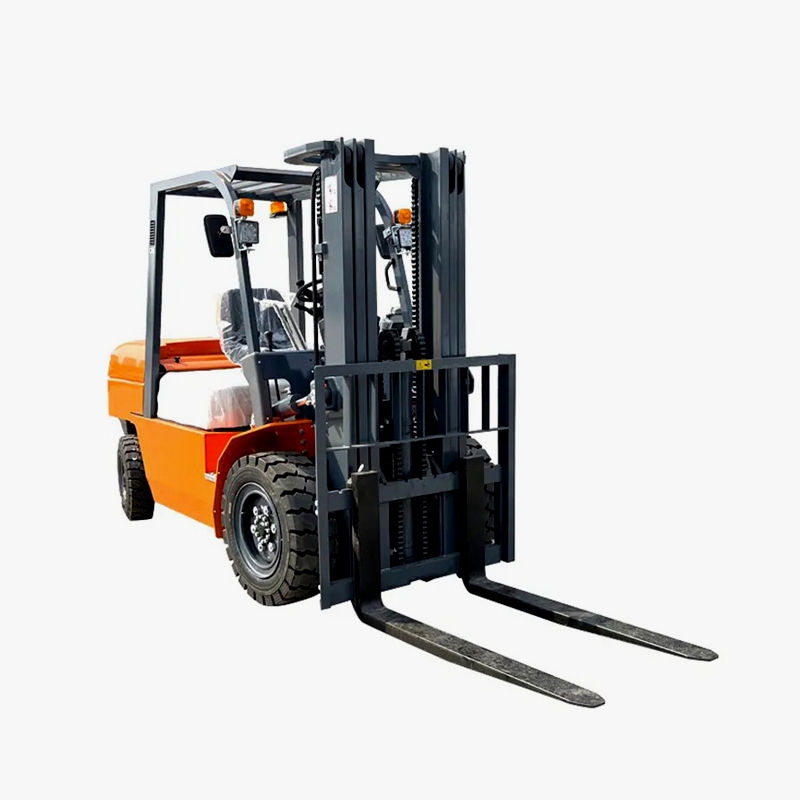

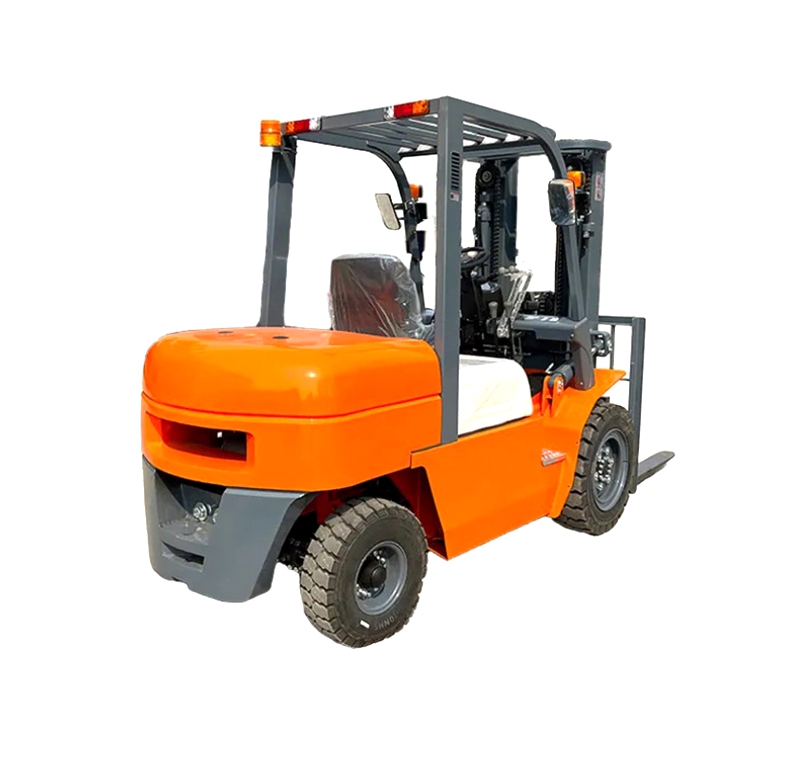

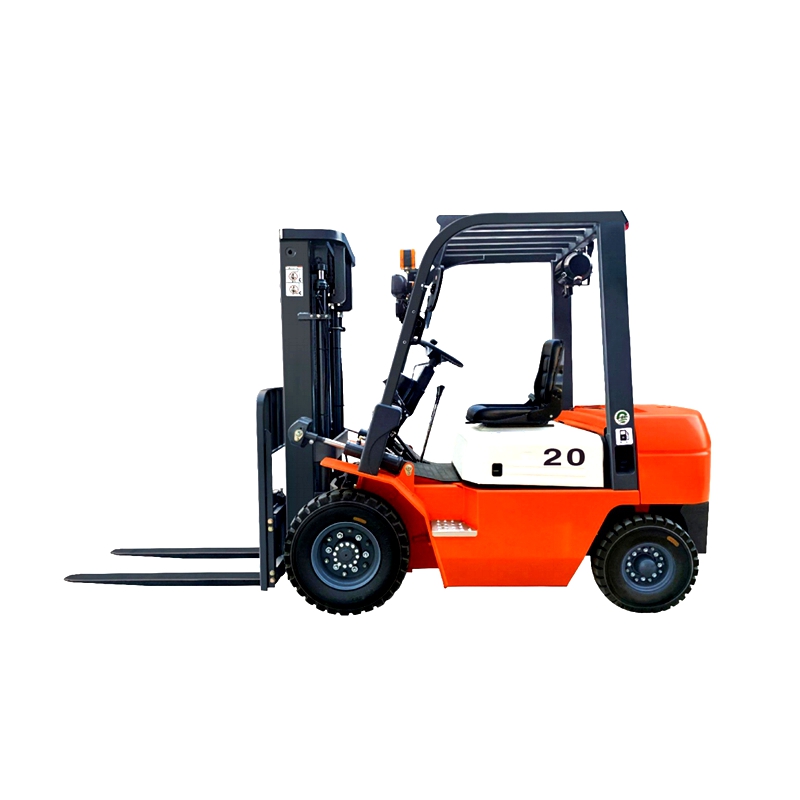

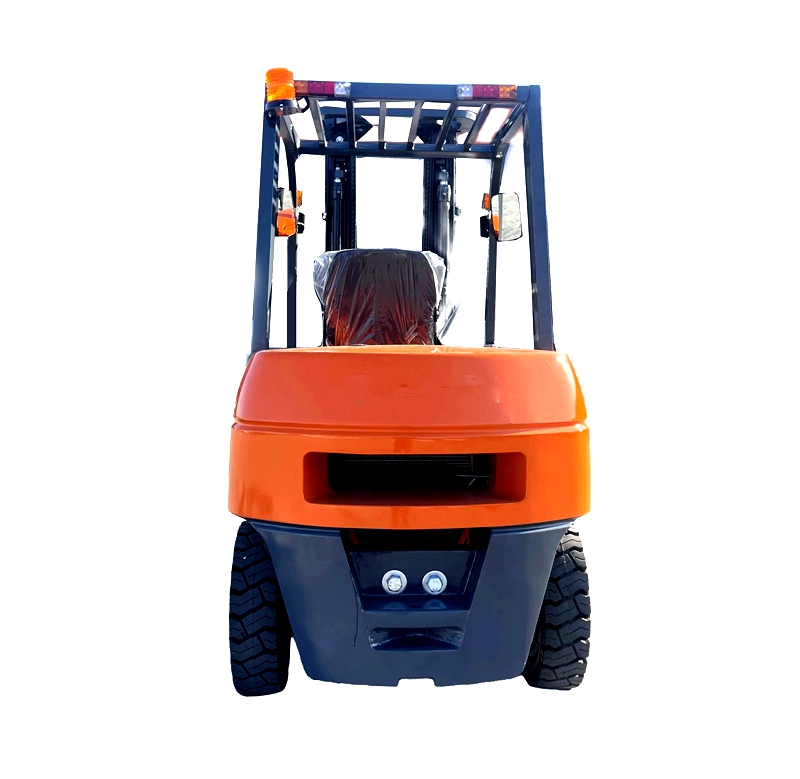

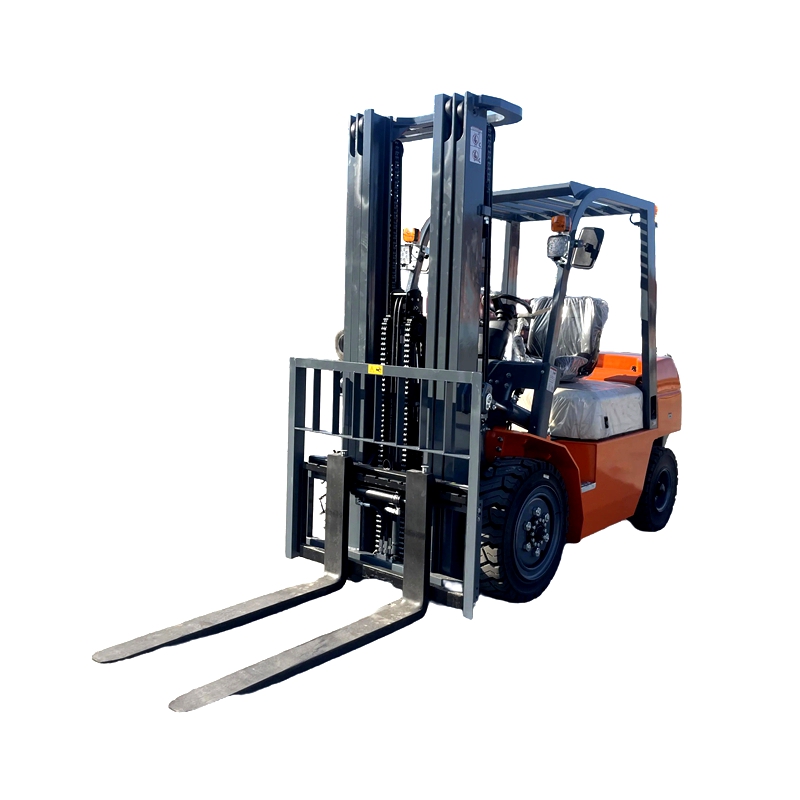

2 T Operate Comfort Safety Multi Purpose Diesel Forklift For Sale

2T Diesel Forklift: Wide-View Frame Design for Safer, More Efficient Operations.
Model: LD-20DF
Rated lifting load: 2000 kg
Load center distance: 500 mm
Free lifting height: 150 mm
overall length(With fork/Without fork): 3422/2502 mm
Width: 1170 mm
Overhead guard height: 2070 mm
Wheelbase: 1600 mm
Minimum ground clearance: 110 mm
Mast tilt angle (front/rear): 6°/12°
Tire no. (before): 7.00x12-12PR
Tire no. (after): 6.00x9-10PR
Minimum turning radius (outer side): 2170 mm
Minimum right angle aisle width: 3900 mm
Fork size: 1070×100×45 mm
maximum working speed(Full-load/No-load ): 17/19 km/h
maximum lifting speed(Full-load/No-load ): 530/550 mm/s
maximum gradeability (Full-load/No-load ): 20/21 %
Forklift weight: 3320 kg
Engine model: Quanchai/B02 - 082/ Quanchai 4C2 - 50V32 (National III)/ Quanchai 4C2 - 50C41 (Beijing IV)
Product Detail Product Description
Description

Diesel Forklift

Diesel Forklift

Diesel Forklift

Diesel Forklift

Diesel Forklift

Diesel Forklift

Diesel Forklift

Diesel Forklift

Diesel Forklift

Diesel Forklift

Diesel Forklift

Diesel Forklift

Diesel Forklift

Diesel Forklift

Diesel Forklift

Warranty Info

2-Ton Diesel Forklift – Perfect Blend of Exceptional Performance and Comfortable Operation

This 2-ton diesel forklift features a sleek and elegant exterior design, with smooth lines and a modern aesthetic that makes it both a practical material handling tool and a standout presence in industrial environments.

Equipped with a new-generation steering wheel adjustment mechanism, it allows for precise multi-angle adjustments to suit different operators' habits and body types. This innovative design significantly enhances operational comfort, reducing fatigue during long hours of work, while also improving adjustment reliability to ensure stability in complex working conditions without looseness or displacement.

The high-roof large-diameter intake system is a key technical highlight. It effectively keeps dust away from the engine, creating a clean air intake environment to prevent performance degradation and component wear caused by dust intrusion. This ensures the engine operates at peak efficiency for longer, significantly extending its service life and reducing maintenance costs and downtime.

The wide-view frame design comprehensively expands the driver’s field of vision. Whether maneuvering through narrow warehouse aisles or busy loading/unloading areas, operators can clearly observe the surrounding environment and cargo, effectively minimizing the risk of collisions and enhancing both safety and operational efficiency.

A reliable LCD digital instrument panel with a user-friendly human-machine interface displays real-time key vehicle parameters such as speed, fuel level, and engine RPM. Operators can quickly grasp the vehicle’s status at a glance, enabling timely adjustments to ensure smooth workflow.

Additionally, a cast steering axle is available as an optional feature. Its robust and durable construction not only provides stable and reliable steering performance but also reduces routine maintenance frequency and costs due to its structural advantages, helping businesses save on operational expenses.

This 2-ton diesel forklift combines outstanding design and advanced technology to deliver a new level of efficiency, comfort, and safety for your material handling operations.
