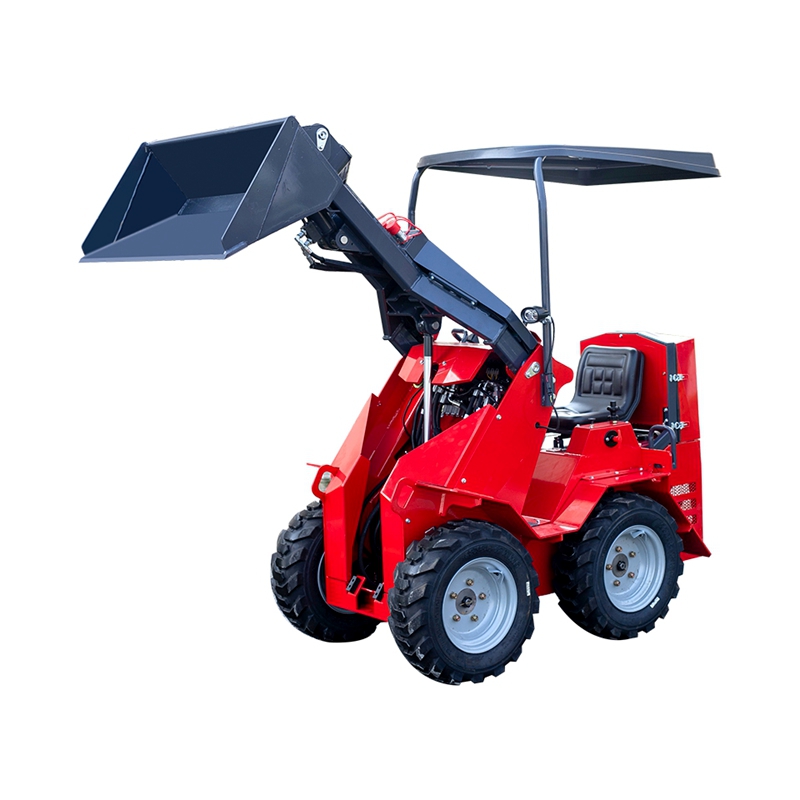

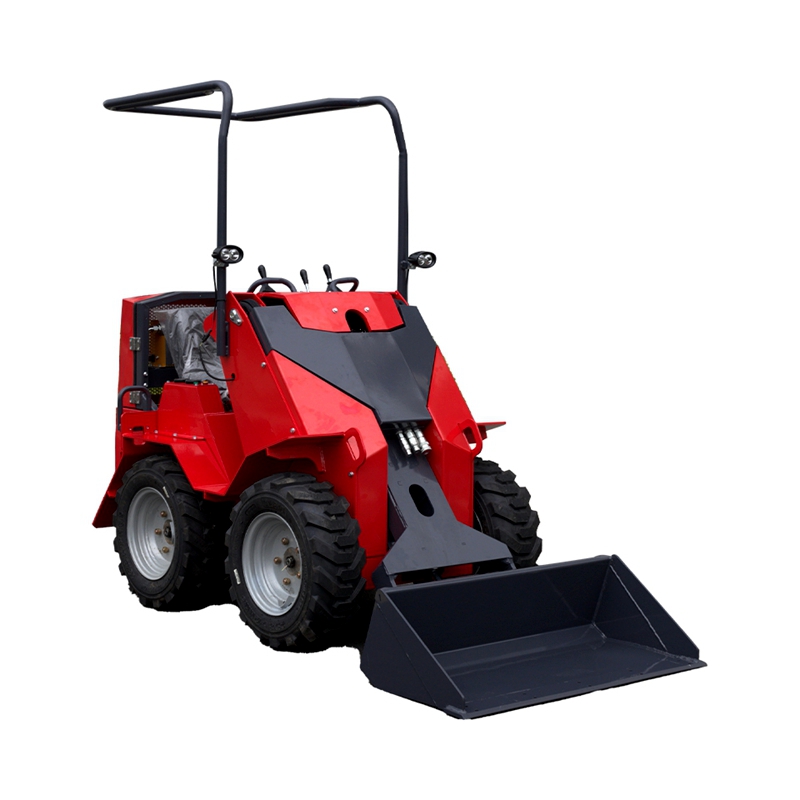

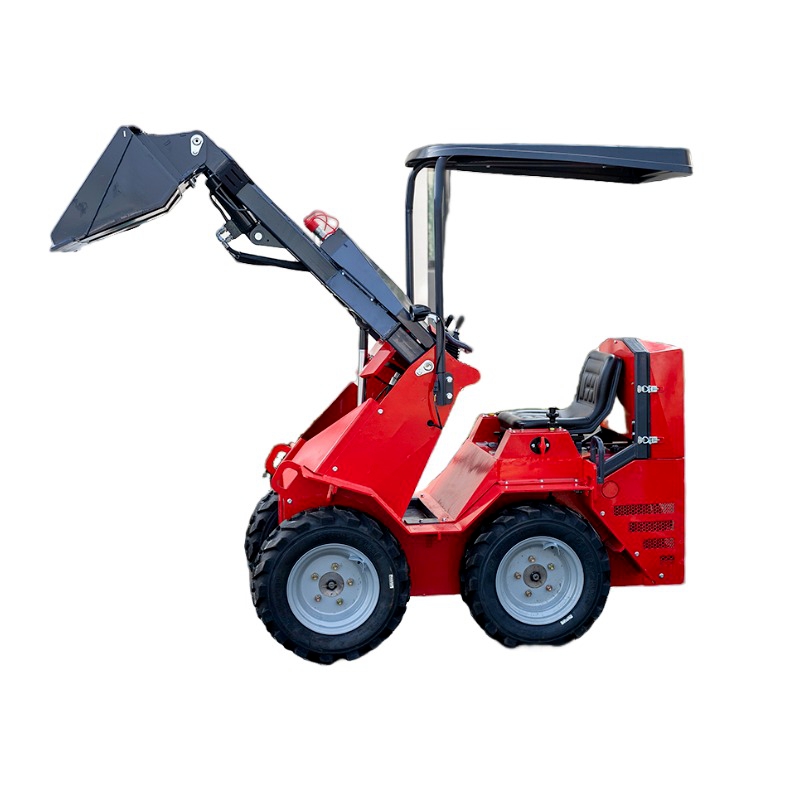

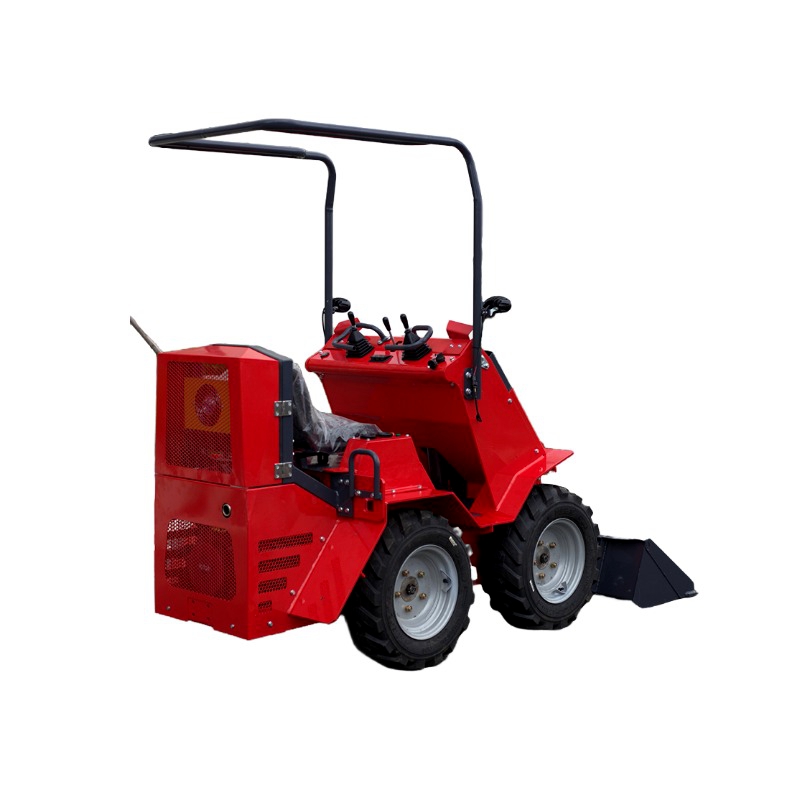

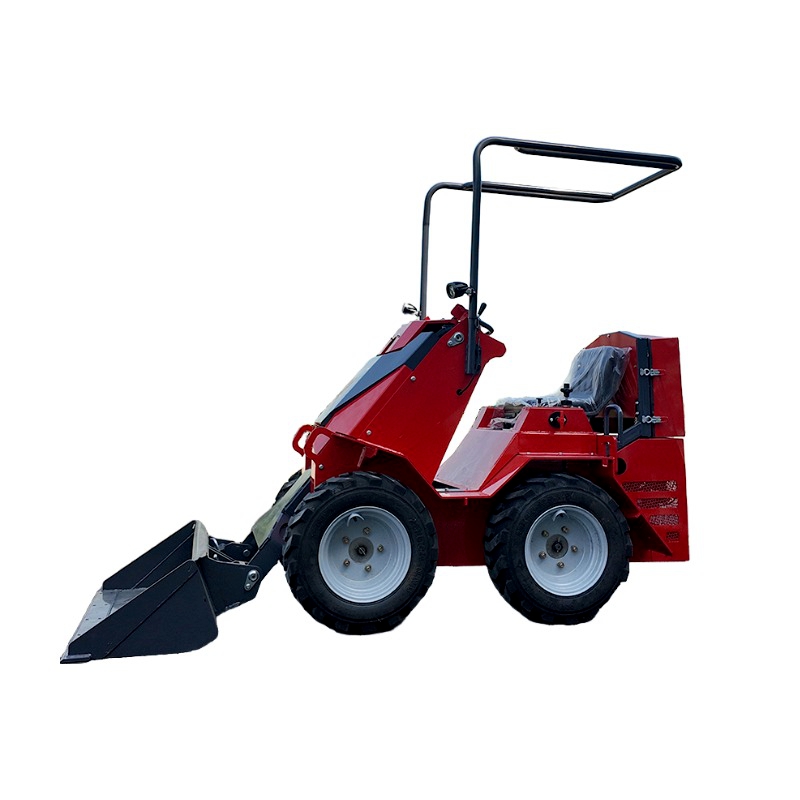

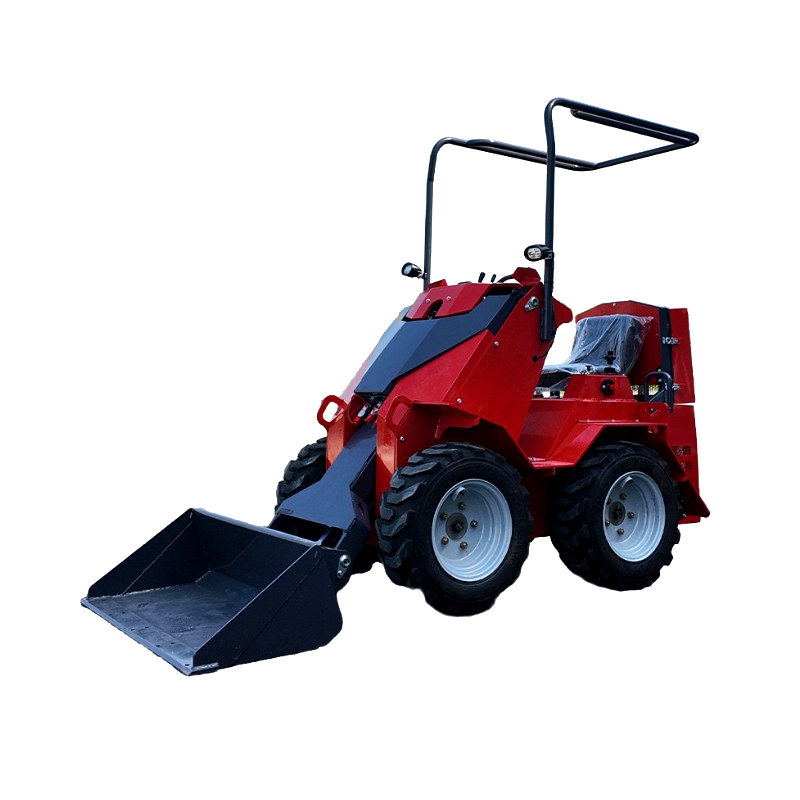

200 Kg Highly Versatile and Maneuverable Wheeled Skid Steer Loader

Full-Life Cycle Economy: 40% cost reduction through labor replacement and minimized heavy machinery use.

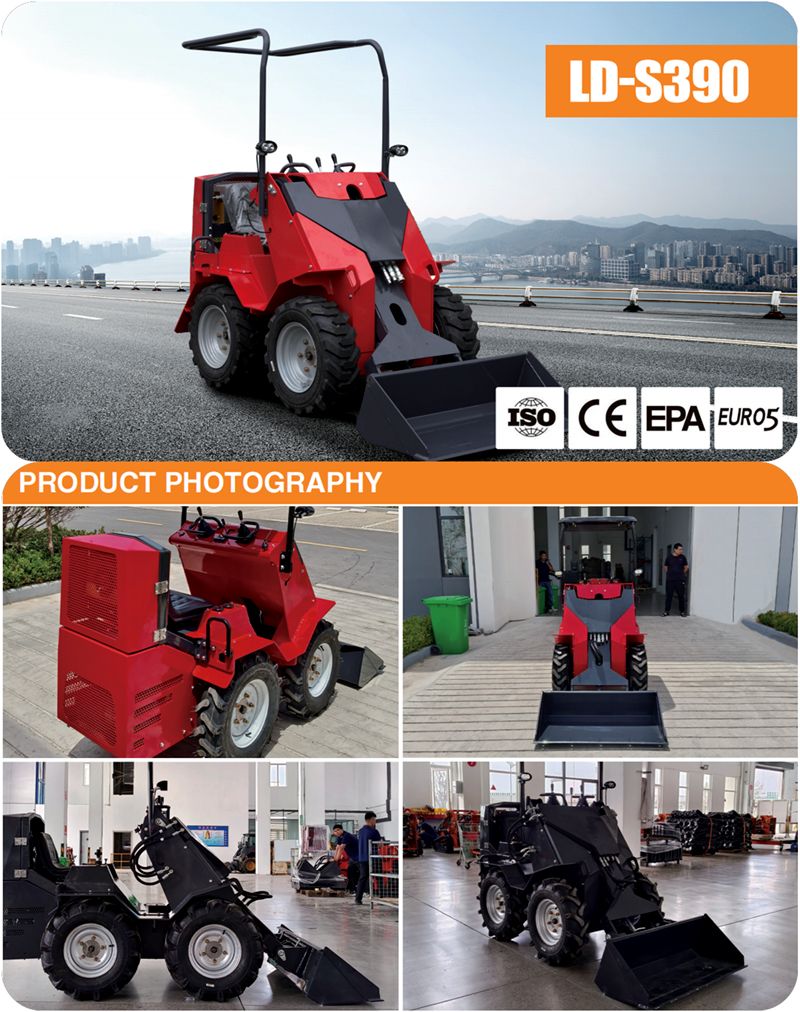

Model: LD-S390
Engine brand: Electric/koop/Runtong/Zhongcheng/B&S
Rated power: 6kw、72V、125ah/7.5/8.6/8.5/9.9kw
Number of cylinders: 1
Air intake way: Naturally Aspirated
Emissions standards: EPA/ERUO5
Rated operating capacity: 200Kg
Maximum operating capacity: 300Kg
Maximum breakout force: 3.5KN
Bucket capacity: 0.12m³
Driving speed: 0-6km/h
Total cycling time: 9s
System operating pressure: 17bar
Fuel tank capacity: 5L
Operating weight: 1050kg
Wheel size: 23*8.5-12
Vehicle height: 1250mm
Length with standard bucket: 2400mm
Vehicle width (standard tire): 960mm
Length without standard bucket: 1900mm
Bucket width: 1050mm
Tail length: 220mm
Height at maximum extension: 2620mm
Height to the bucket pin: 2000mm
Maximum height as lay the bucket flat: 1830mm
Dumping height: 1470mm
Discharge distance: 600mm
Wheelbase: 800mm
Ground clearance: 180mm
The flip angle of the bucket on the ground: 27°
Bucket flip angle at highest position: 114°
Product Detail Product Description
Description

Wheeled Skid Steer Loader

DETAIL PRESENTATION

Wheeled Skid Steer Loader

Wheeled Skid Steer Loader

Wheeled Skid Steer Loader

PRODUCT SELLING POINTS

Wheeled Skid Steer Loader

Wheeled Skid Steer Loader

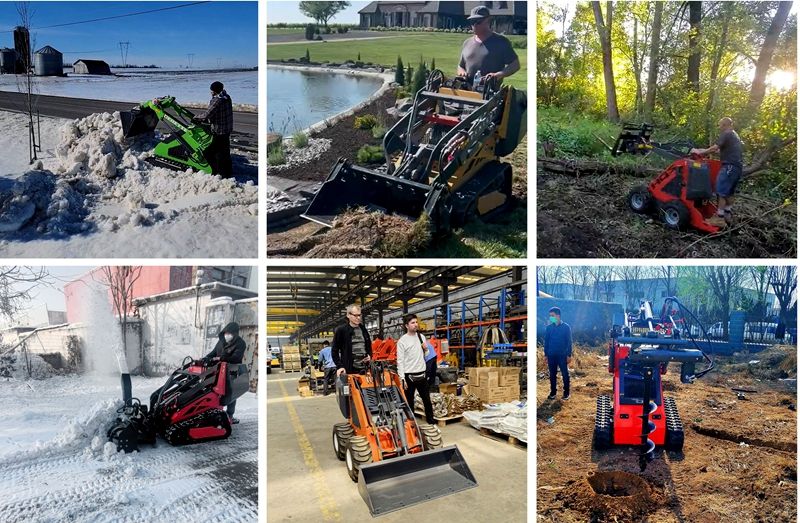

PRODUCT APPLICATIONS

Wheeled Skid Steer Loader

Wheeled Skid Steer Loader

PRODUCT MANUFACTURING PROCESS

Wheeled Skid Steer Loader

Wheeled Skid Steer Loader

Wheeled Skid Steer Loader

ABOUT US

Wheeled Skid Steer Loader

Wheeled Skid Steer Loader

PACKAGING AND TRANSPORT

Wheeled Skid Steer Loader

Wheeled Skid Steer Loader

MARKETING NETWORK

Wheeled Skid Steer Loader

Wheeled Skid Steer Loader

FAQ

Wheeled Skid Steer Loader

Warranty Info

Flexible construction in narrow spaces: With an ultra - compact body less than 2 meters wide, it can easily enter narrow spaces such as narrow passages in indoor underground parking lots and small rooms during indoor decoration. The zero - radius turning allows the equipment to flexibly adjust the direction in a cramped environment. Combined with the 1 - minute quick - change system and multi - modular tools, such as using a bucket to transport decoration materials and a breaker to demolish small indoor walls, it greatly improves the construction efficiency in narrow spaces.

Stable power operation under complex terrain:In Gobi area, the foundation construction of communication base station can be carried out, and in mudflat area, the preliminary work of reclamation project can be carried out. From material handling to excavation operations, it can be completed stably and efficiently.

Precise operation and intelligent operation and maintenance: The optimized hydraulic system enables light and precise operation and performs excellently in high - precision operations such as equipment installation and material handling in precision electronic equipment production workshops and material distribution in precision parts processing workshops. The intelligent control system monitors parameters such as oil temperature and pressure in real - time, promptly discovers potential problems, and supports preventive maintenance, ensuring the stable operation of the equipment and reducing operation and maintenance costs.

Comfortable, safe, and environmentally friendly operation: Humanized operating body, low emission function that meets urban environmental standards, and can operate safely in areas with high environmental requirements such as urban hospitals and school playgrounds.

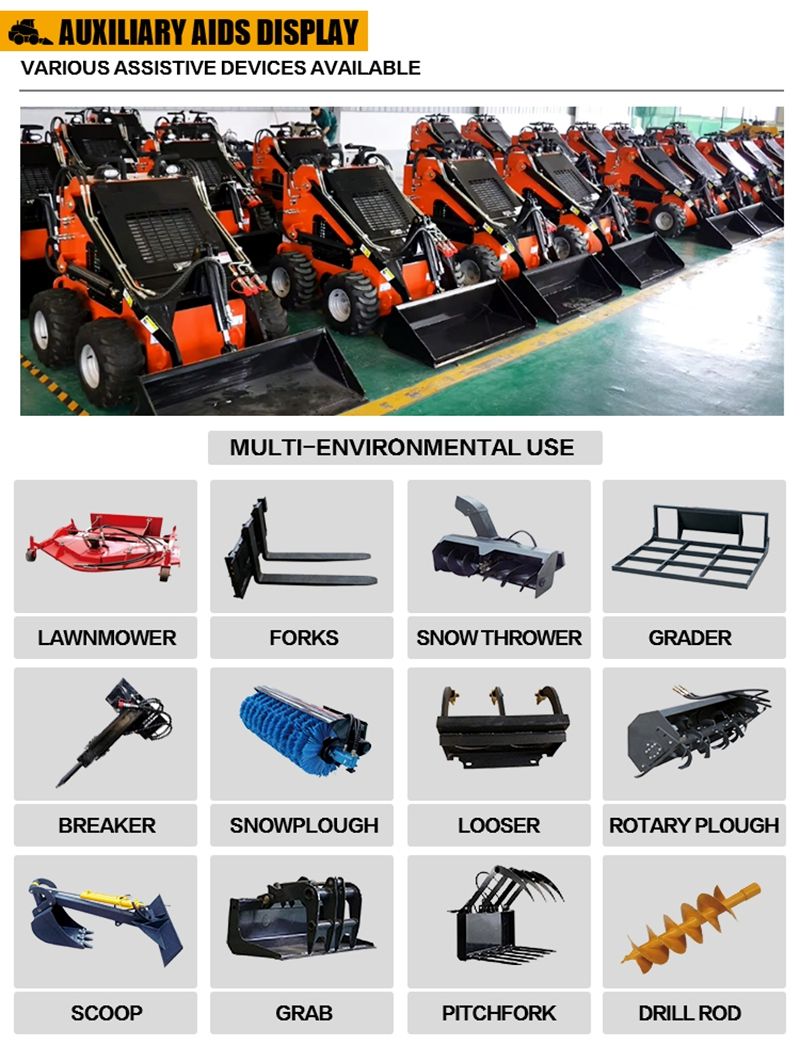

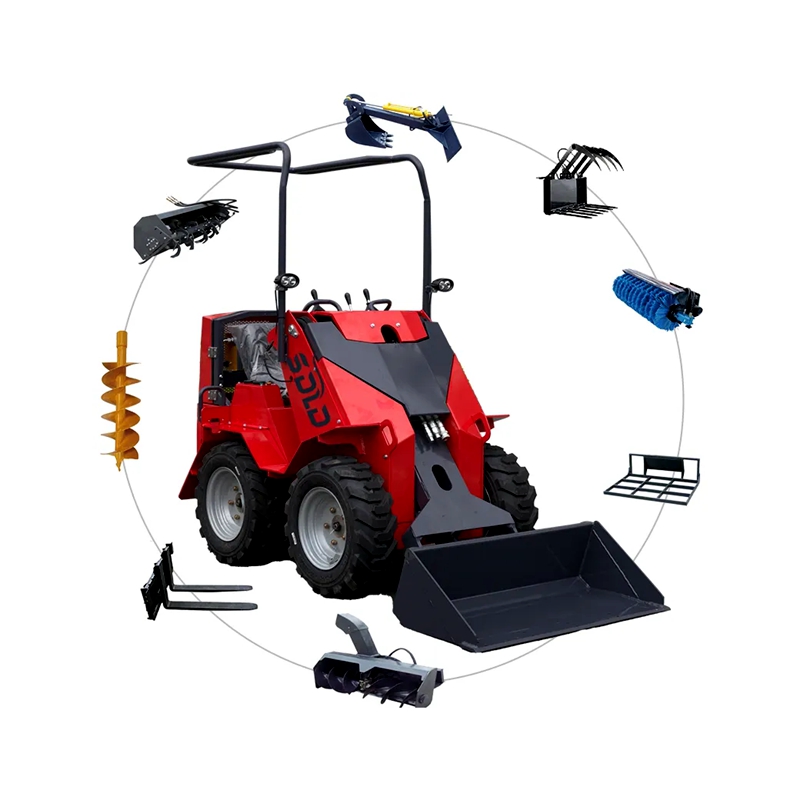

Economical, efficient and widely - adaptable: With low maintenance costs, key components are made of high - quality materials, the structure is simple and reliable, and the service life is long, reducing the number of repairs. The industry - standard interface can be compatible with a variety of international general accessories. Users can flexibly select accessories according to different project needs, such as landscape construction and municipal engineering maintenance, improving equipment utilization and reducing comprehensive costs.
