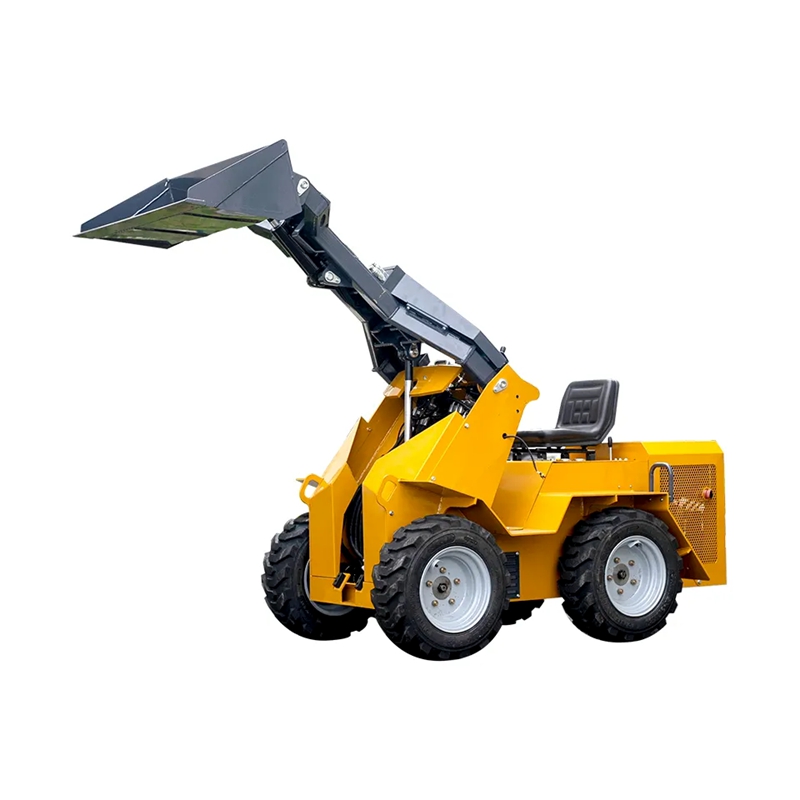

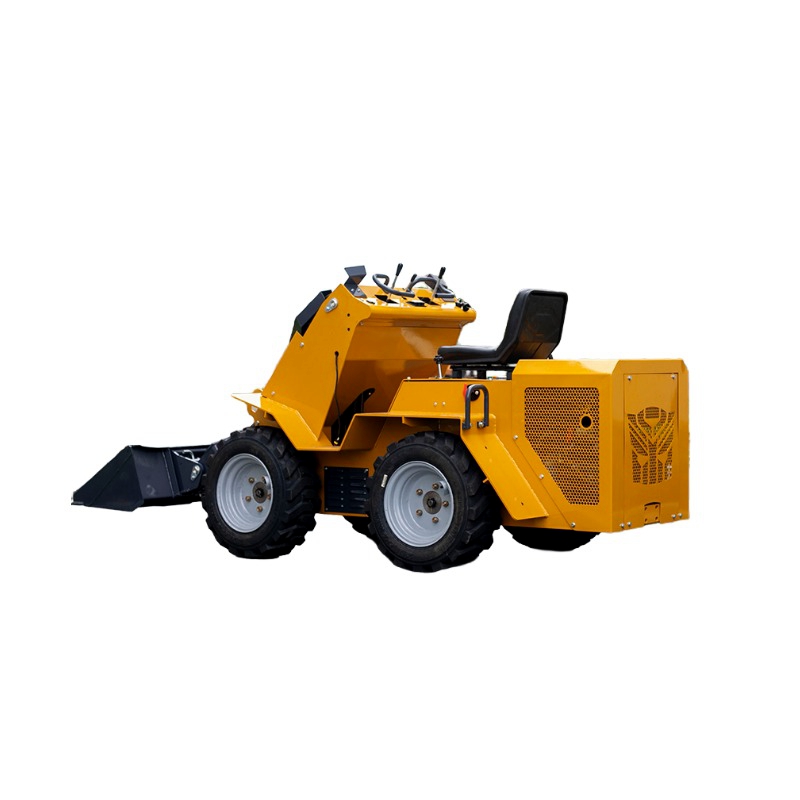

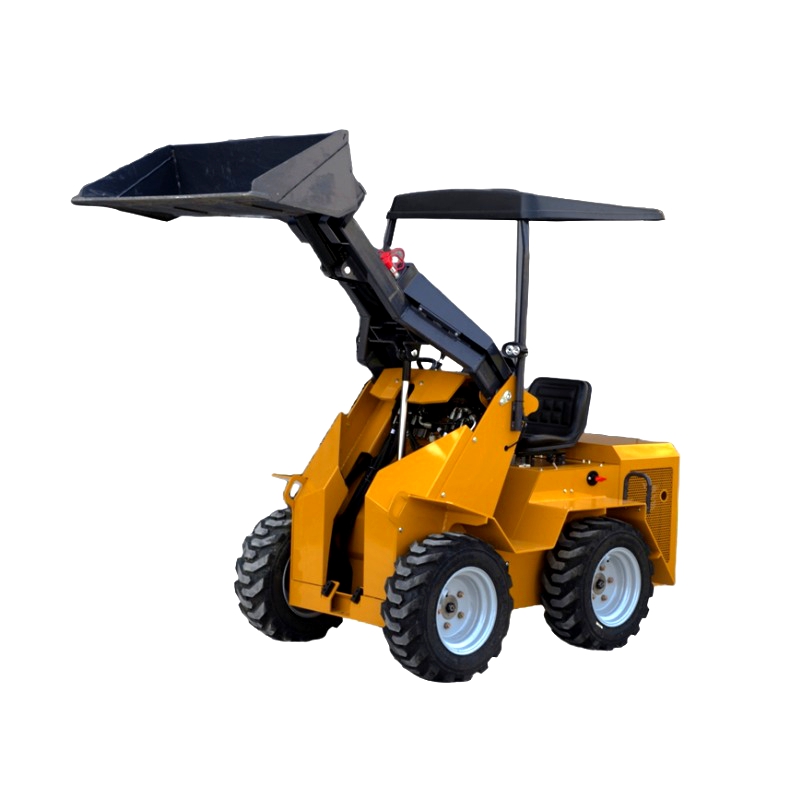

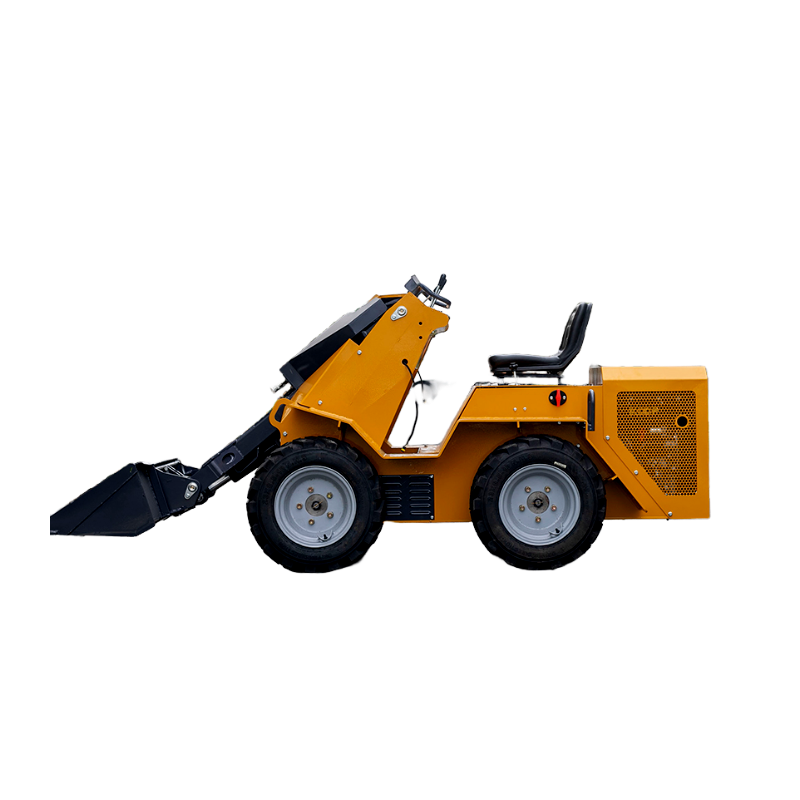

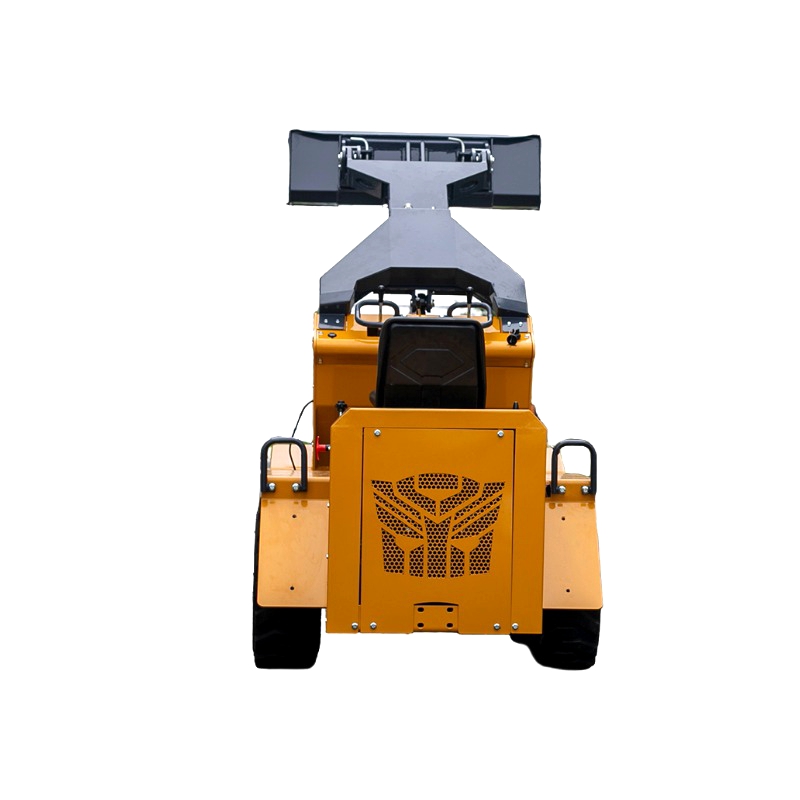

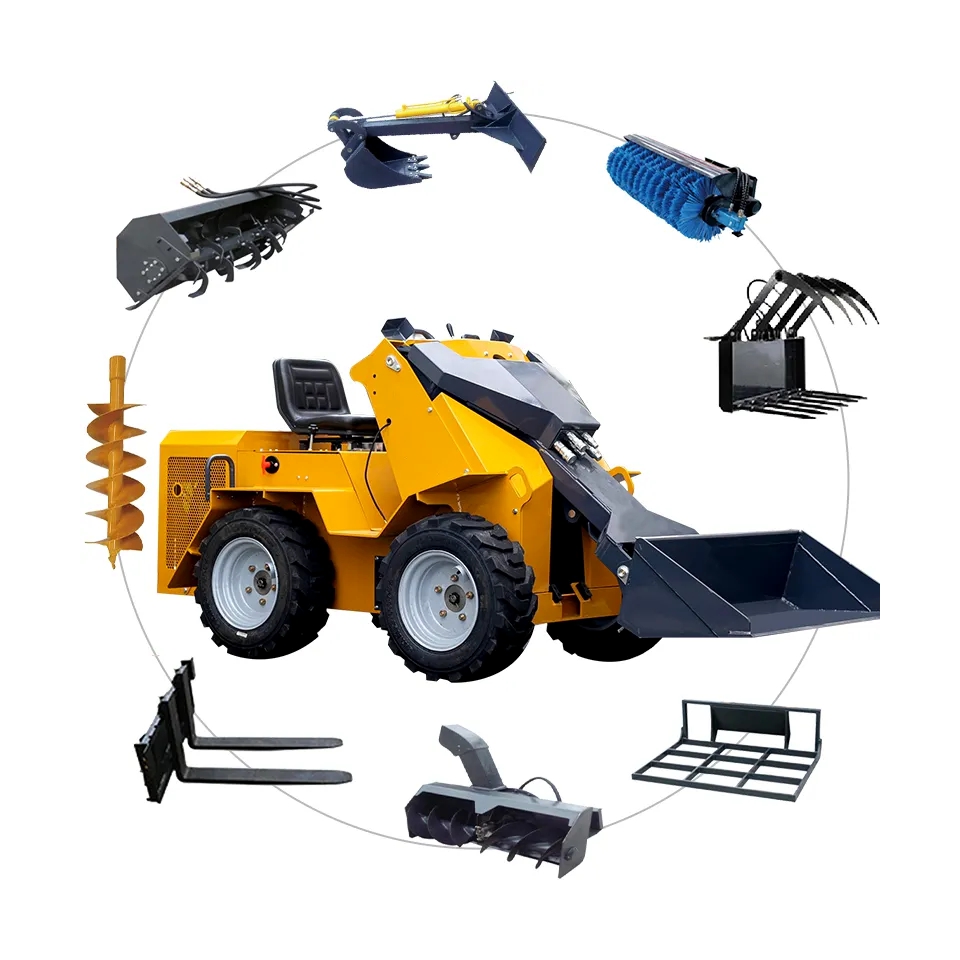

250 Kg Highly Versatile and Maneuverable Wheeled Skid Steer Loader

Low Maintenance Costs: Simple, reliable structure extends critical component lifespan and reduces repair frequency.
Model: LD-S490
Engine brand: Electric/koop/Runtong/B&S
Rated power: 8kw、72v、200ah/15/19.2/17kw
Number of cylinders: 2
Air intake way: Naturally Aspirated
Emissions standards: EURO5/EPA
Rated operating capacity: 250Kg
Maximum operating capacity: 350Kg
Maximum breakout force: 450KN
Bucket capacity: 0.12m³
Driving speed: 0-6km/h
Total cycling time: 9s
System operating pressure: 17-21bar
Fuel tank capacity: 10L
Operating weight: 1200KG
Wheel size: 23*8.5-12
Vehicle height: 1300mm
Length with standard bucket: 2700mm
Vehicle width (standard tire): 1100mm
Length without standard bucket: 2300mm
Bucket width: 1050mm
Tail length: 500mm
Height at maximum extension: 2530mm
Height to the bucket pin: 1933mm
Maximum height as lay the bucket flat: 1740mm
Dumping height: 1400mm
Discharge distance: 595mm
Wheelbase: 940mm
Ground clearance: 180mm
The flip angle of the bucket on the ground: 27°
Bucket flip angle at highest position: 114°
Product Detail Product Description
Description

Wheeled Skid Steer Loader

DETAIL PRESENTATION

Wheeled Skid Steer Loader

Wheeled Skid Steer Loader

Wheeled Skid Steer Loader

PRODUCT SELLING POINTS

Wheeled Skid Steer Loader

Wheeled Skid Steer Loader

PRODUCT APPLICATIONS

Wheeled Skid Steer Loader

Wheeled Skid Steer Loader

PRODUCT MANUFACTURING PROCESS

Wheeled Skid Steer Loader

Wheeled Skid Steer Loader

Wheeled Skid Steer Loader

ABOUT US

Wheeled Skid Steer Loader

Wheeled Skid Steer Loader

PACKAGING AND TRANSPORT

Wheeled Skid Steer Loader

Wheeled Skid Steer Loader

MARKETING NETWORK

Wheeled Skid Steer Loader

Wheeled Skid Steer Loader

FAQ

Wheeled Skid Steer Loader

Warranty Info

Efficient operation and quick - switching in indoor narrow spaces: The ultra - compact body can enter narrow aisles in indoor factory workshops, storage rooms in commercial places, and other spaces. The zero - radius turning allows the equipment to move flexibly indoors. The 1 - minute quick - change system, combined with multi - modular tools, can quickly switch from bucket material transportation to auger drilling during indoor decoration, improving indoor operation efficiency.

Complex - terrain power - guarantee and flexible - shuttling: The all - terrain adaptability enables the equipment to drive stably on complex terrains such as mountains and hills. The flexibility of the short wheelbase, combined with powerful diesel power, can shuttle in orchards for land consolidation, material handling, and other operations among fruit trees. The power is strong and the turning is flexible, adapting to the operation needs of complex terrains.

Precise hydraulic - operation and intelligent - maintenance - management: The optimized hydraulic system is operationally precise and performs well in high - precision operations such as basic excavation for sculpture installation and fine cleaning at cultural relic restoration sites. The intelligent control system monitors the equipment status in real - time, predicts faults, and supports preventive maintenance, reducing equipment maintenance costs and extending the equipment service life.

Comfortable - view and environmentally - friendly operation: The panoramic cab has a wide view, allowing operators to clearly observe the work site and improving operation safety. The low - emission feature meets strict European and American standards and is suitable for operations in places with high environmental quality requirements such as urban parks and botanical gardens, without affecting the surrounding environment.

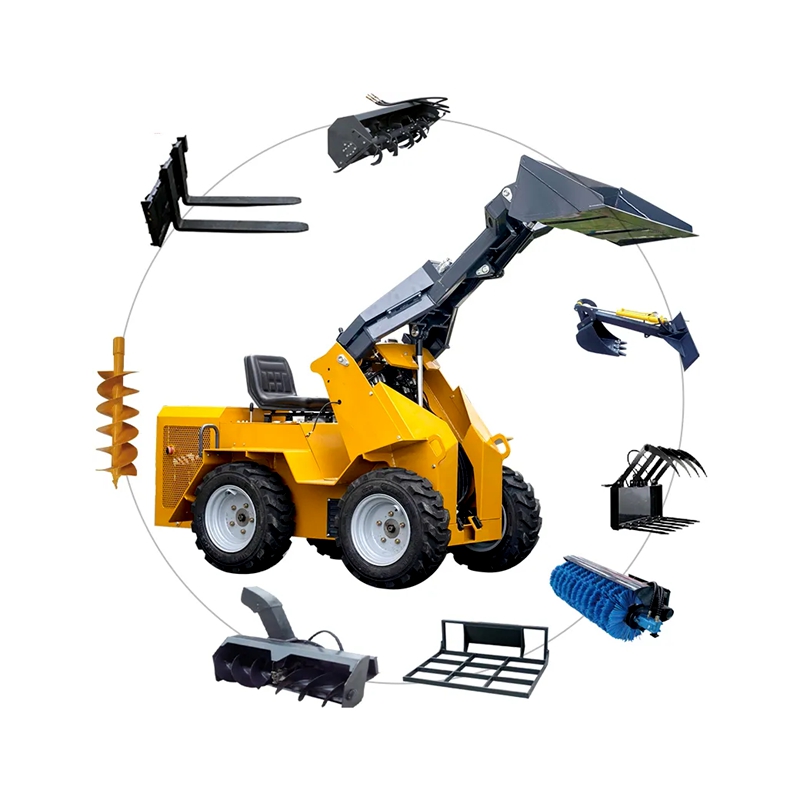

Economical, durable and accessory - adaptable: The low maintenance cost, with a sturdy and durable structure and long - life key components. The industry - standard interface can be compatible with various international brand accessories. Users can select appropriate accessories according to different operation scenarios, reducing equipment procurement and usage costs, and improving the cost - performance ratio and applicability of the equipment.
