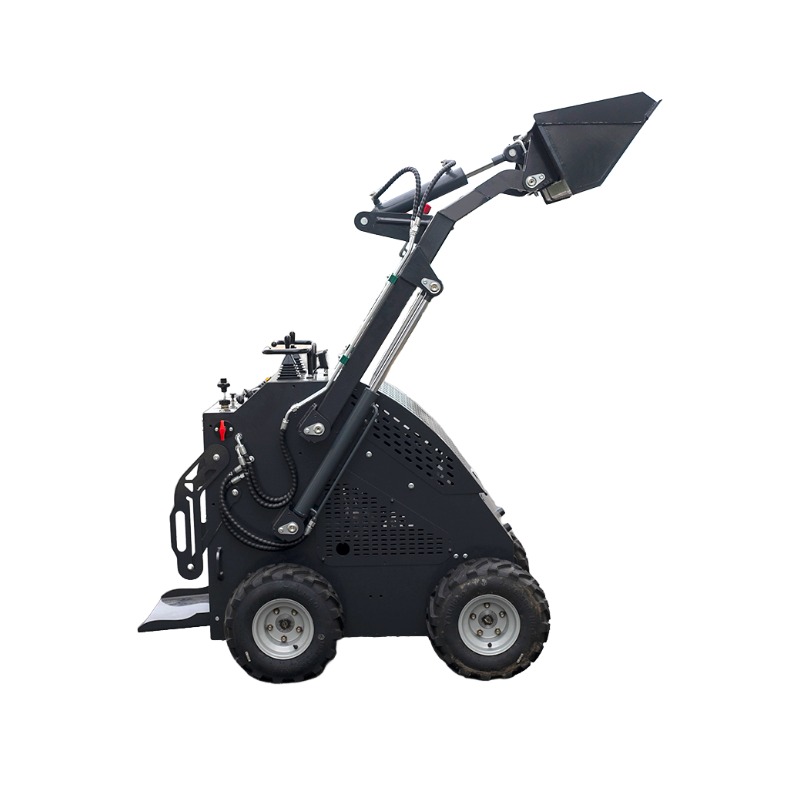

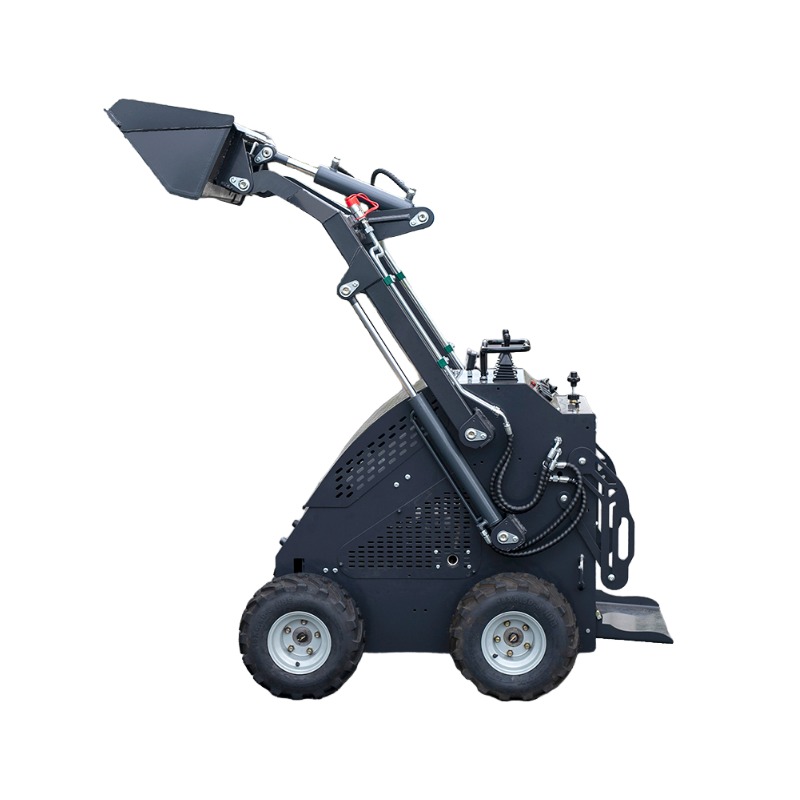

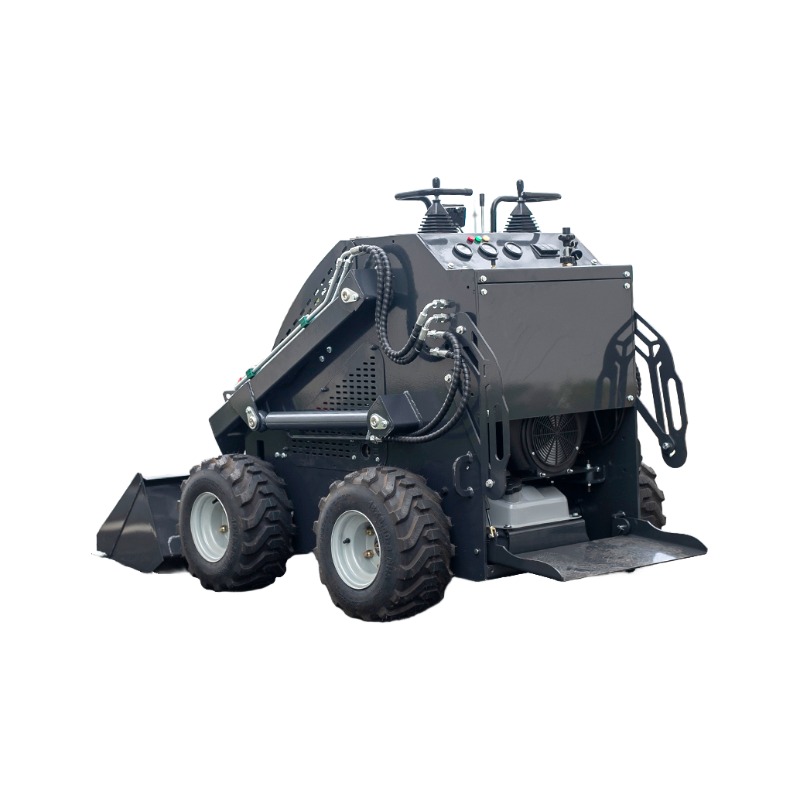

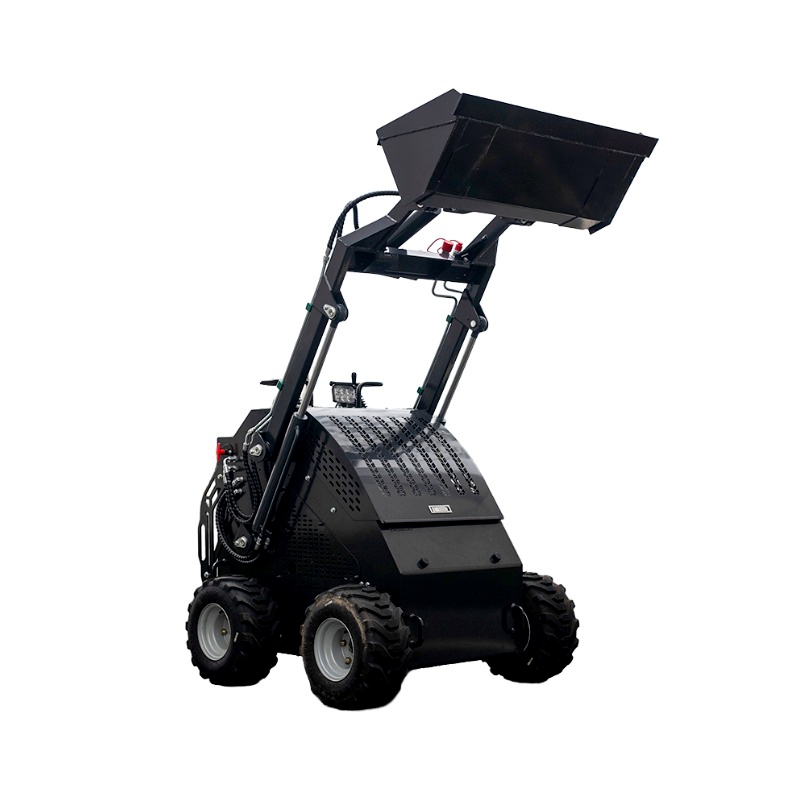

300 Kg Highly Versatile and Maneuverable Wheeled Skid Steer Loader

Intelligent Control System: Real-time monitoring of oil temperature, RPM, and fault codes for proactive maintenance.

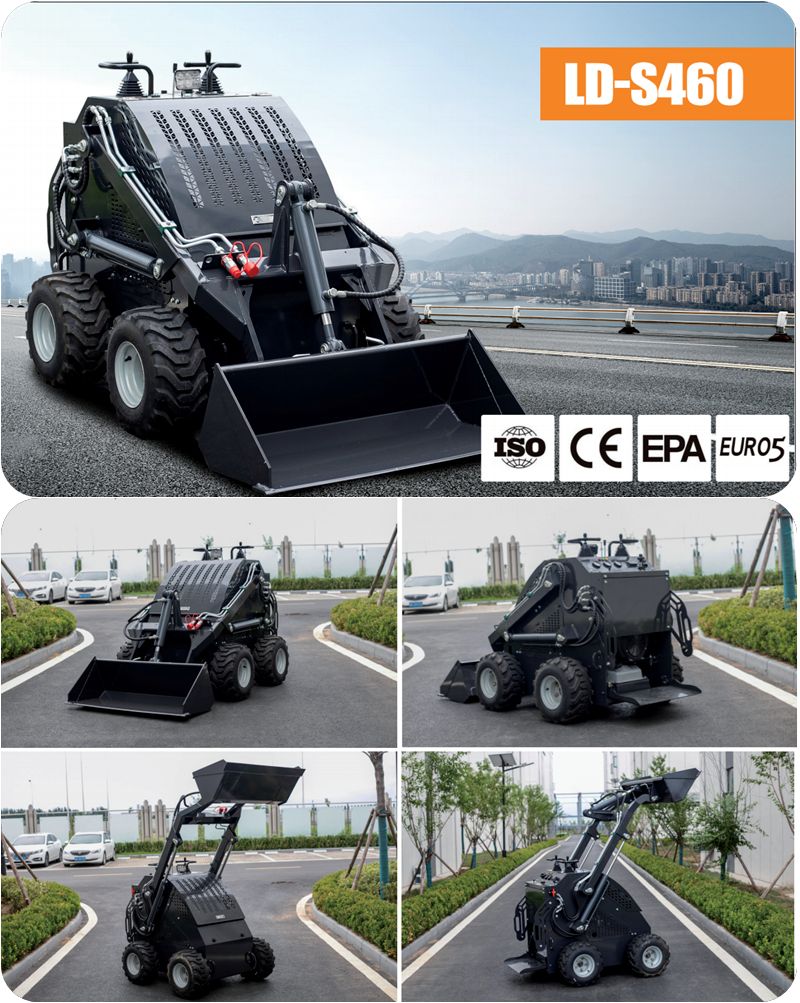

Model: LD-S460
Engine brand: Electric/koop/Runtong/B&S
Rated power: 8kw、72v、200ah/15/19.2/17kw
Number of cylinders: 2
Air intake way: Naturally Aspirated
Emissions standards: EURO5/EPA
Rated operating capacity: 300Kg
Maximum operating capacity: 400Kg
Maximum breakout force: 4.5KN
Bucket capacity: 0.12m³
Driving speed: 0-6km/h
Total cycling time: 9s
System operating pressure: 17-21bar
Fuel tank capacity: 10L
Operating weight: 1200KG
Wheel size: 18*8.5-8
Vehicle height: 1300mm
Length with standard bucket: 2140mm
Vehicle width (standard tire): 1050mm
Length without standard bucket: 1850mm
Bucket width: 1050mm
Tail length: 500mm
Height at maximum extension: 2400mm
Height to the bucket pin: 1870mm
Maximum height as lay the bucket flat: 1720mm
Dumping height: 1510mm
Discharge distance: 250mm
Wheelbase: 800mm
Ground clearance: 110mm
The flip angle of the bucket on the ground: 27°
Bucket flip angle at highest position: 114°
Product Detail Product Description
Description

Wheeled Skid Steer Loader

DETAIL PRESENTATION

Wheeled Skid Steer Loader

Wheeled Skid Steer Loader

Wheeled Skid Steer Loader

PRODUCT SELLING POINTS

Wheeled Skid Steer Loader

Wheeled Skid Steer Loader

PRODUCT APPLICATIONS

Wheeled Skid Steer Loader

Wheeled Skid Steer Loader

PRODUCT MANUFACTURING PROCESS

Wheeled Skid Steer Loader

Wheeled Skid Steer Loader

Wheeled Skid Steer Loader

ABOUT US

Wheeled Skid Steer Loader

Wheeled Skid Steer Loader

PACKAGING AND TRANSPORT

Wheeled Skid Steer Loader

Wheeled Skid Steer Loader

MARKETING NETWORK

Wheeled Skid Steer Loader

Wheeled Skid Steer Loader

FAQ

Wheeled Skid Steer Loader

Warranty Info

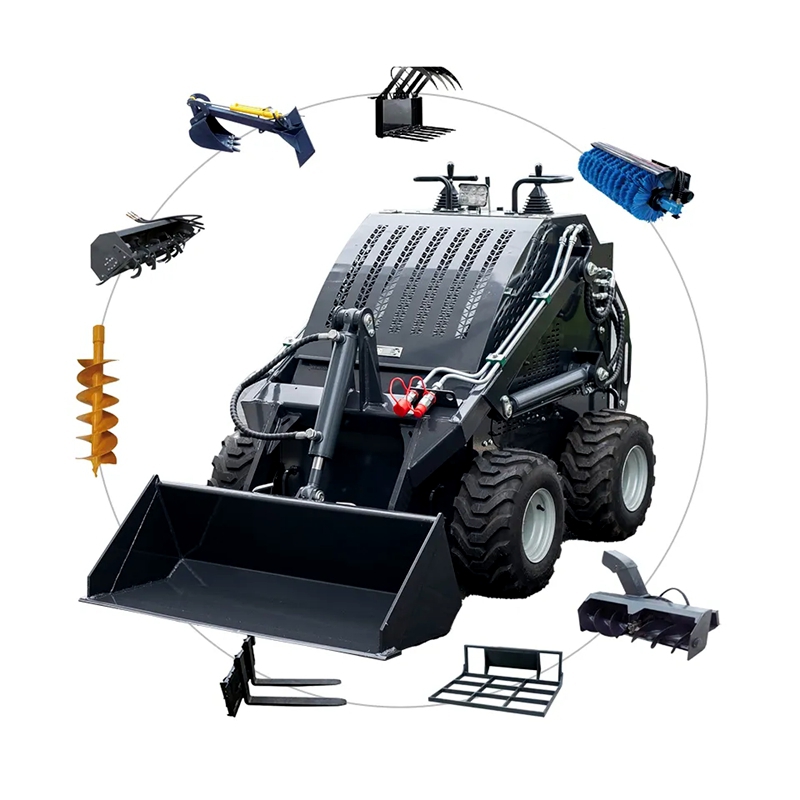

Flexible operation and multi - purpose tool in narrow spaces: The ultra - compact body design allows the equipment to enter narrow spaces such as alleys and narrow footpaths in scenic areas. The zero - radius turning, combined with multi - modular tools, for example, in alley cleaning, the bucket can clean up garbage and the breaker can demolish abandoned facilities, meeting various operation needs in narrow spaces. The 1 - minute quick - change system ensures rapid tool replacement and improves operation efficiency.

Stable power operation under complex terrain:In Gobi area, the foundation construction of communication base station can be carried out, and in mudflat area, the preliminary work of reclamation project can be carried out. From material handling to excavation operations, it can be completed stably and efficiently.

Optimized - hydraulic and intelligent - monitoring operation: After the hydraulic system is optimized, the operation is light and precise. It performs well in operations with extremely high requirements for operation accuracy, such as small material handling in jewelry processing workshops and fine component installation in electronic equipment manufacturing workshops. The intelligent control system monitors parameters such as oil temperature and rotation speed in real - time, ensuring the stable operation of the equipment and improving operation quality and efficiency.

Long - life and widely - adaptable: The low maintenance cost benefits from a simple and reliable structure and long - life key components. The industry - standard interface can be connected to many international general accessories, facilitating users to select appropriate accessories according to different operation needs and improving the versatility and practicality of the equipment.
