390 Kg Highly Versatile and Maneuverable Wheeled Skid Steer Loader

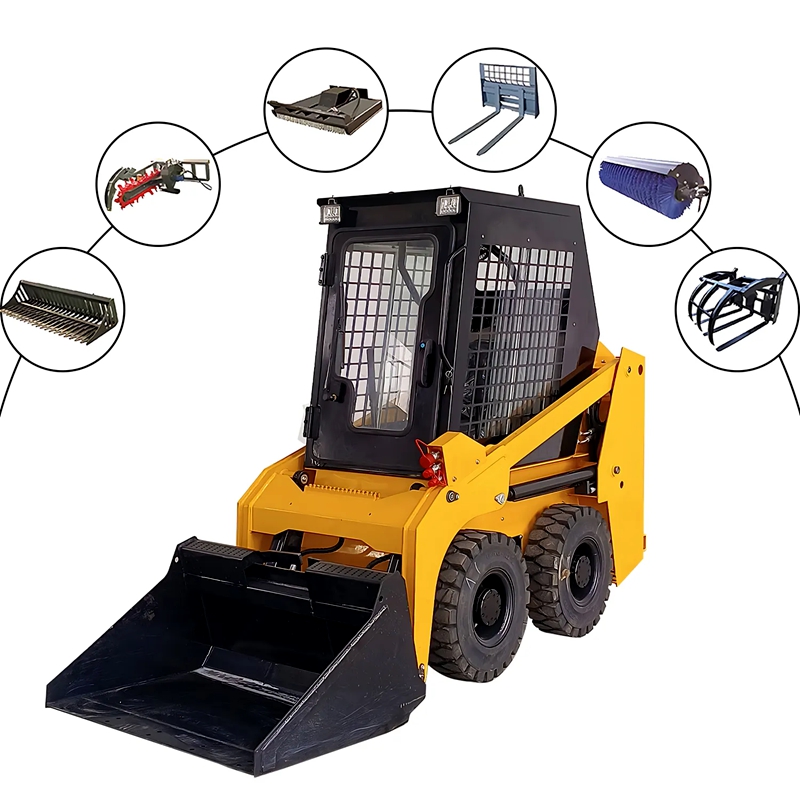

Modular Tool Compatibility: Supports over 200 attachments like buckets, breakers, and augers for versatile operations.
Model: LD-S25
Engine: Laidong 385 / Yangma 380 、 18.8kW / 17.8KW
Tire Specification: Solid tire / 570*155
Maximum working height (A): 3410mm
Maximum pin height (B): 2540mm
Maximum discharge height (H): 2000mm
Maximum discharge distance (D): 2400mm
Bucket swing angle (β): 130°
Bucket discharge angle (γ): 30°
Departure angle (α): 20°
Total height (C): 1865mm
Ground clearance (P): 130mm
Wheelbase (I): 730mm
Length without bucket (F): 1865mm
Total width (W): 950mm
Bucket width (X): 1000mm
Total length (L): 2730mm
Turning radius (R): 2000mm
Discharge distance (J): 510mm
Bucket capacity: 0.22m³
Hydraulic System;Working pressure: 18MPa
Travel motor: Pai-630
Handle: Mechanical
Rated load (KG): 390
Maximum load (KG): 490
Packaging Weight: Approximately 1.2 tons
Packaging size: 2880×1100×2015 mm (plus 10 or 15cm)
Product Detail Product Description
Description

Wheeled Skid Steer Loader

PRODUCT SELLING POINTS

Wheeled Skid Steer Loader

Wheeled Skid Steer Loader


DETAIL PRESENTATION

Wheeled Skid Steer Loader

PRODUCT APPLICATIONS

Wheeled Skid Steer Loader

Wheeled Skid Steer Loader

PRODUCT MANUFACTURING PROCESS

Wheeled Skid Steer Loader

Wheeled Skid Steer Loader

Wheeled Skid Steer Loader

ABOUT US

Wheeled Skid Steer Loader

Wheeled Skid Steer Loader

PACKAGING AND TRANSPORT

Wheeled Skid Steer Loader

Wheeled Skid Steer Loader

MARKETING NETWORK

Wheeled Skid Steer Loader

Wheeled Skid Steer Loader

FAQ

Wheeled Skid Steer Loader

Warranty Info

Efficient multi - function operation in narrow spaces: With an ultra - compact body, it can easily enter narrow passageways in indoor museum exhibition halls and narrow passageways between buildings in old residential areas. The zero - radius turning, combined with multi - modular tools and the 1 - minute quick - change system, can use a bucket to transport exhibition equipment in the museum passageway and a breaker to demolish abandoned facilities in the passageway of an old residential area, achieving efficient multi - function operations.

Stable power operation under complex terrain:In Gobi area, the foundation construction of communication base station can be carried out, and in mudflat area, the preliminary work of reclamation project can be carried out. From material handling to excavation operations, it can be completed stably and efficiently.

Precise operation and intelligent maintenance: The optimized hydraulic system is operationally precise and performs excellently in high - precision scenarios such as the handling of precision components in high - end electronic product manufacturing workshops and the fine installation operations in precision medical device assembly workshops. The intelligent control system monitors the equipment status in real - time, warns of faults in advance, and supports preventive maintenance, reducing equipment failure downtime and ensuring operation continuity.

Economical, practical and widely - adaptable: With low maintenance costs, the structure is simple and reliable, and the key components have a long life. The industry - standard interface can be compatible with various international brand accessories. Users can flexibly select accessories according to different operation needs, such as garden pruning and municipal pipeline maintenance, to achieve wide application of the equipment and improve the cost - performance ratio of the equipment.
