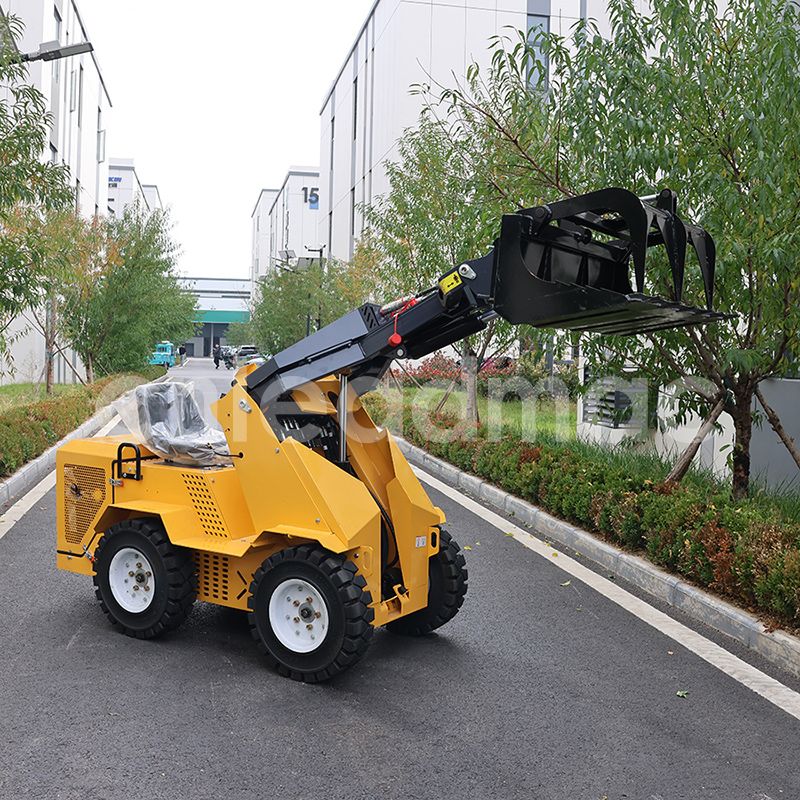

In today's agriculture, construction, and industrial sectors, the efficiency and flexibility of material handling directly impact operating costs and productivity. Our LD-S390 skid steer loader, equipped with a dedicated grab attachment, offers a brand-new solution to customers worldwide with its superior technical specifications and powerful functionality.

1. High-Performance Foundation: LD-S390 Core Parameters

Rated Power: 6kW, 72V, 125Ah (7.5/8.6/8.5/9.9kW optional)

Rated Load: 200kg (Maximum Load 300kg)

Maximum Breakthrough Force: 3.5KN

Bucket Capacity: 0.12m³

Work Cycle: 9-second rapid cycle

Travel Speed: 0-6km/h continuously variable transmission

Operating System Pressure: 17-21bar

Grading Ability: 25°

Overall Dimensions: 2400×960×1250mm (including bucket)

2. Multi-functional Grab: Redefining the Value of Skid Steer Loaders

Traditionally, skid steer loaders are primarily used for shoveling operations. However, by adding a dedicated grab attachment, their functionality is greatly expanded. Our grab bucket is constructed from high-strength steel and equipped with a highly efficient hydraulic system, enabling rapid grabbing, handling, and stacking of various materials, from bulk fertilizer and feed to lumpy construction waste and ore.

3. Core Application Scenarios

Agriculture and Orchard Management

Orchard Operations: The 1050mm wide grab bucket easily moves fruit boxes and pruned branches, while the 1470mm unloading height prevents damage to fruit trees.

Livestock Farming: Combined with feed mixing attachments, it enables precise grabbing and feeding of feed, and the 1050kg operating weight ensures operational stability.

Farm Cleanup: A 600mm unloading distance allows for rapid clearing of agricultural waste such as straw and weeds.

Construction and Industrial Sector

Construction Site Cleanup: A maximum lifting height of 2620mm can grab construction waste such as scrap wire and broken concrete from high places.

Material Handling: A bucket tilting angle of 27°-114° adapts to various material grabbing needs.

Municipal and Environmental Applications

Waste Disposal: A maximum horizontal height of 1830mm facilitates waste loading operations.

Landscaping Maintenance: A pin height of 2000mm suits various landscaping operation scenarios.

4. Technological Advantages

Quick Attachment Switching: The grab bucket features a quick-connect design, combined with a 9-second work cycle, enabling efficient operation.

Powerful Power Configuration: Optional electric/koop/Runtong/Zhongcheng/B&S engines.

Environmental Certification: Meets EPA/ERUOS emission standards.

Flexible Operation: An 800mm wheelbase ensures excellent maneuverability, and 180mm ground clearance adapts to complex terrain.

5. Future-Oriented Design

With the increasing global demand for efficient and environmentally friendly operating methods, the market potential for skid steer loader grab bucket attachments is enormous. Shandong Linmin Group will continue to invest in research and development, launching more innovative attachments based on the excellent parameters of the existing LD-S390 to help customers meet diverse operational challenges.
