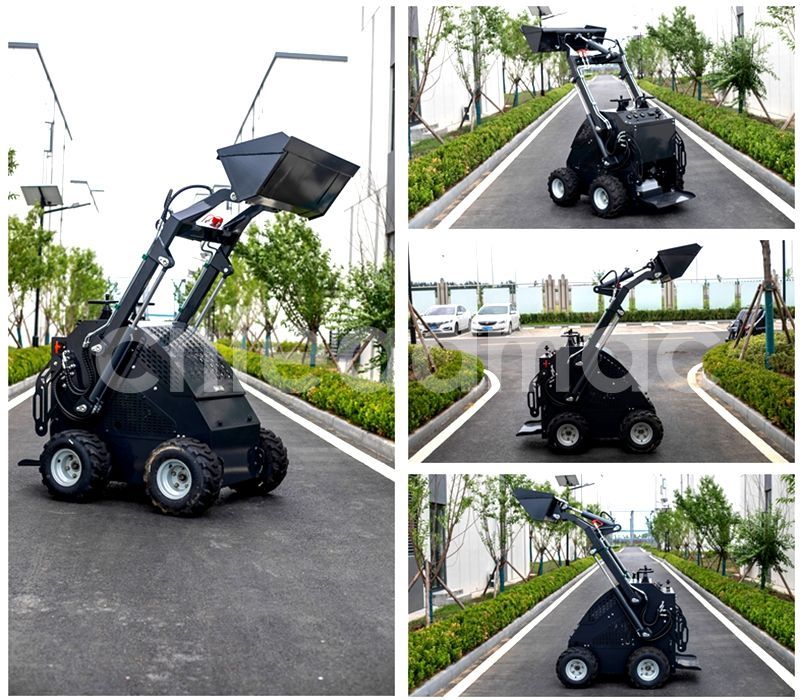

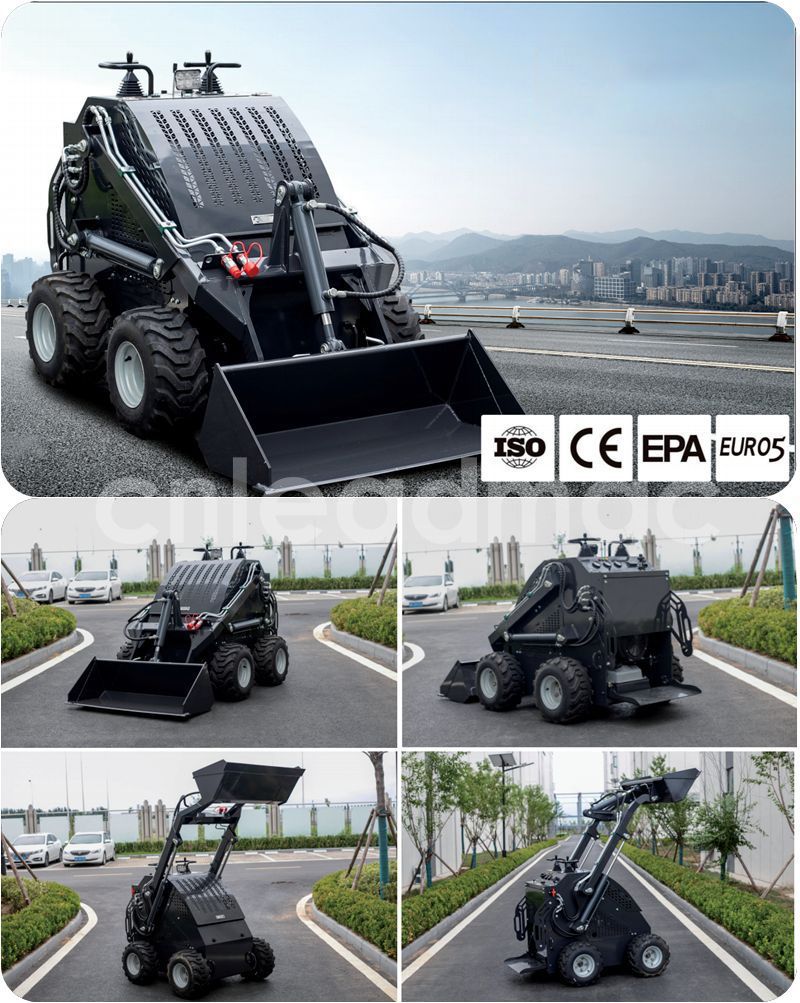

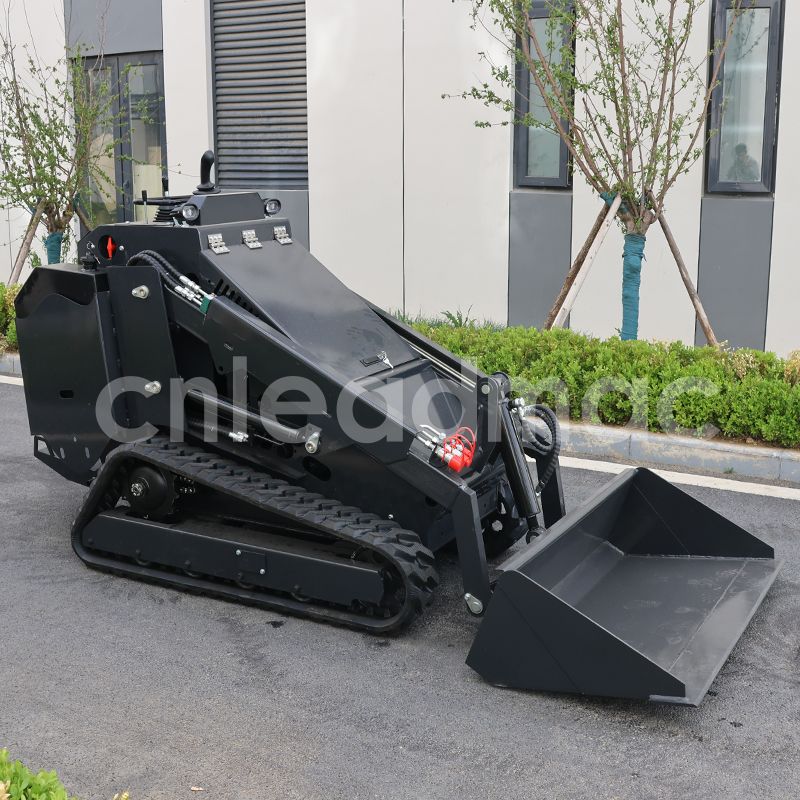

1050mm Ultra-Narrow Body • Stand-On Operation • Dual Power Options—Transform Every Corner into a High-Performance Workzone

1. Millimeter-Level Compact Design: Built for Tight Quarters

Space-Saving Dimensions:

1300mm height (below standard door lintels) • 1050mm width • 1850mm bucket-free length—easily navigates through 90cm doorways, 1.2m narrow alleys, and greenhouse entrances without disassembly.

500mm ultra-short tail • 800mm wheelbase: Achieves 360° zero-radius turning in confined spaces like stairwells or underground garage corners—complete maneuvers in 1 turn where traditional loaders need 3.

Stand-On Operation Advantage:

Rear open platform: Operators face the work area directly, aligning line of sight with the bucket for precise wall-side loading or pipe positioning—reduces blind spots by 70% compared to seated models.

Instant start-stop: Mount and dismount in 1 second without doors, boosting switching efficiency by 40% in frequent-task scenarios (e.g., material transport in renovation sites).

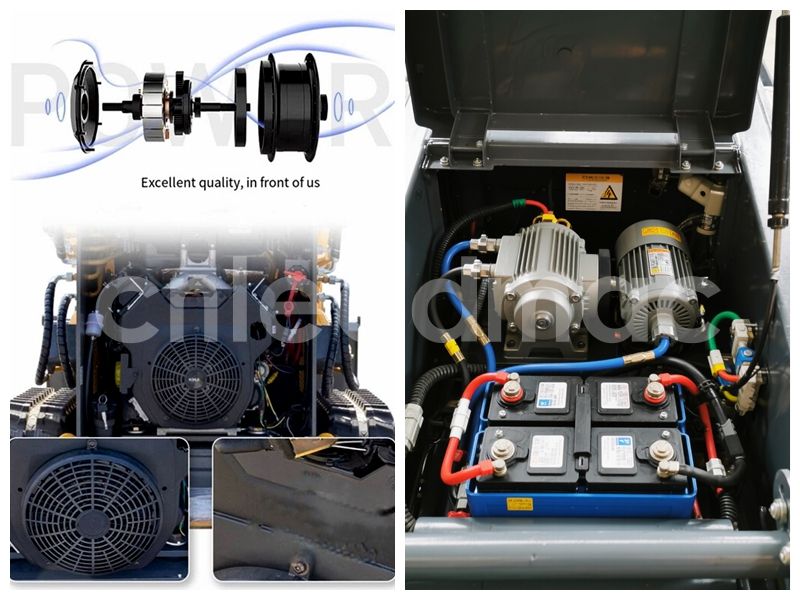

2. Dual Power Systems: No Compromise on Scenario Adaptation

Electric Version (Ideal for Indoor/Eco-Friendly Tasks):

8kW permanent magnet motor • 72V/200Ah battery: Zero emissions, 65dB noise (similar to conversation), perfect for office renovations, underground garages, and urban commercial zones.

Longevity & Fast Charge: 4-hour continuous operation on full charge; supports 220V home charging (80% in 1 hour) for overnight readiness.

Fuel Version (Heavy-Duty/Outdoor Dominance):

Koop/Rantong twin-cylinder engine (15-19.2kW): 4.5kN breakout force lifts 400kg gravel effortlessly, tackling farmland tilling, road breaking, and other heavy loads.

10L fuel tank: 8-hour runtime per tank—no frequent refueling in remote sites. Diesel heating system ensures start-up at -20°C.

3. 30-Second Easy Operation: Novices to Proficiency in Minutes

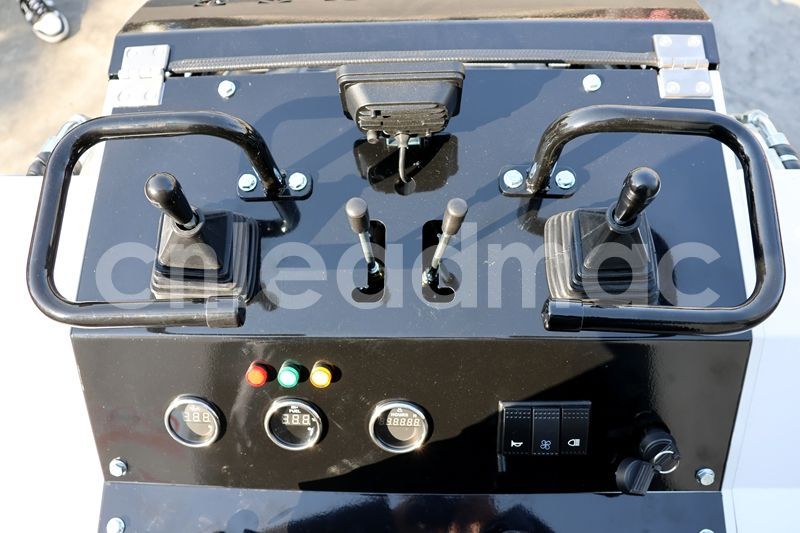

Ergonomic control handles follow intuitive logic—master basic operations in 30 minutes, enabling smooth integration of driving, lifting, and tilting. The digital dashboard displays real-time data and fault alerts, streamlining maintenance for hassle-free use.

4. Hardcore Specifications: Big Performance in a Small Package

Lifting Capability:

2.4m maximum reach height: Easily accesses the top of truck cargo beds and medium-sized mixers, eliminating the need for platforms and reducing manual handling.

1.51m dump height • 0.25m discharge distance: Perfectly aligns with agricultural tricycles and small truck beds for direct, spill-free unloading.Maneuverability:1050mm ultra-narrow body • 110mm ground clearance: Conquers 90cm doorways, 1.2m alleys, and rough terrains like gravel or mud with stability.

1200kg operating weight・rear design: Tested anti-tip angle >10°—safer operation on uneven ground.

5. All-Scenario Adaptation: One Machine, Multiple Roles

Indoor Renovation/Commercial Sites: Electric version’s zero-emission and low-noise design protects finished interiors; standard bucket clears debris efficiently, with optional sweepers for floor leveling.

Outdoor Construction/Agriculture: Fuel version’s robust power drives breakers for road demolition and augers for tree planting; 10L tank ensures all-day work without interruptions.

Tight-Space Operations: 1050mm width + 500mm short tail enable agile 360° turning in greenhouses and narrow lanes—where traditional loaders can’t reach.

Quick Attachment Swap: Change buckets, breakers, or forks in 30 seconds without tools, adapting to tasks like debris removal, rock breaking, and pallet handling instantly.

Redefine “Small Equipment” Potential: full-function optimized solution for tight spaces—Stand to operate with clarity, fit where others can’t, and conquer tasks with dual-power precision.
